OWI 300 PLAN

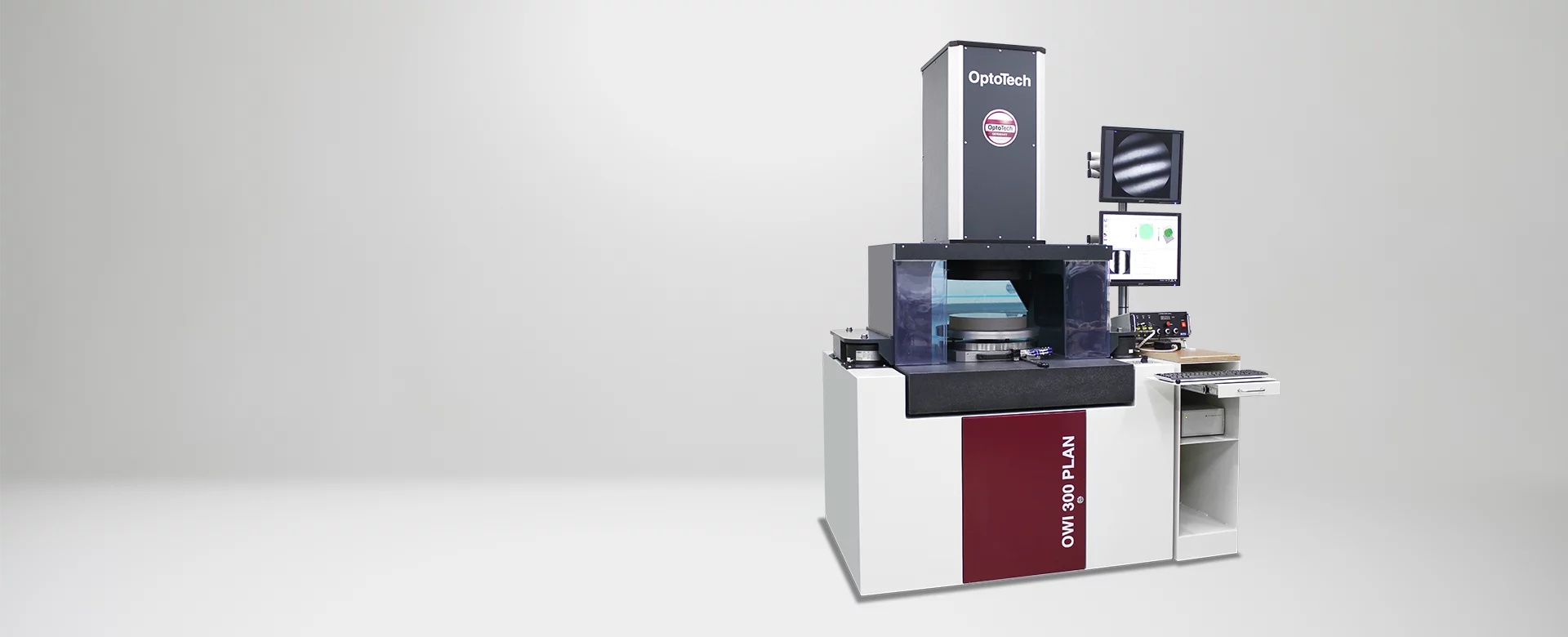

The workshop interferometer OWI 300 PLAN is the ideal measurement system for testing plano single surfaces or lenses produced as multi blocks.

Metrology
Interferometry
Form Measurement
Radius Measurement
General informationHighlightsSystem advantageOptionsTechnical Data
PDF Download
Contact request
Contact form


Contact request

Highlights

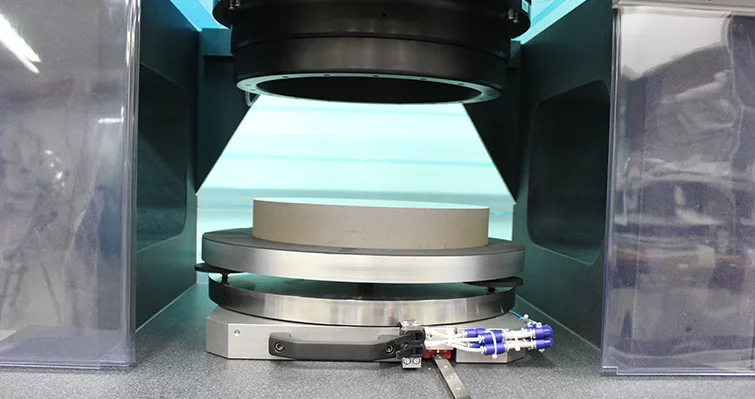

  • Vertical beam guidance on rigid portal construction

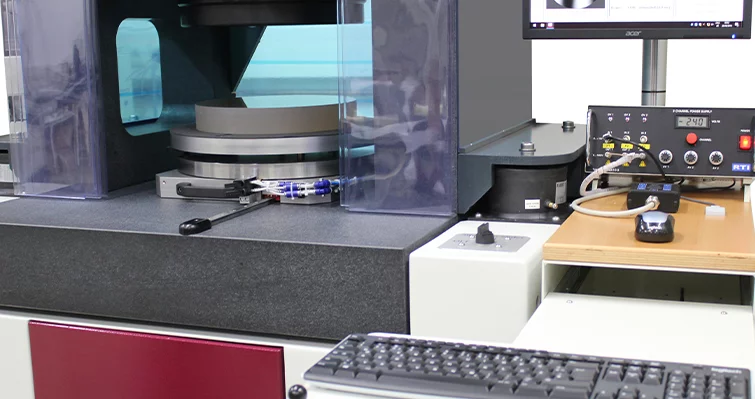

  • Mounted on a vibration absorbing granite base
  • Passive air-type shock absorbers
  • Electrically variable zoom device for magnification of the interference image
  • Air bearing table for lateral positioning
  • Tip and tilt device
  • Safe from air housing

System advantage

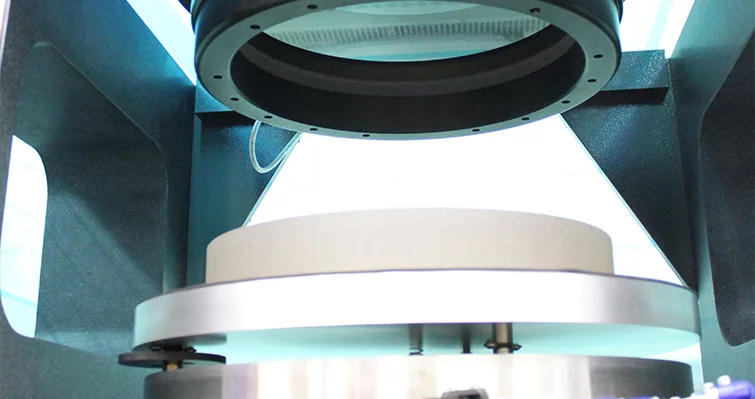

  • Quality of the Fizeau-surface λ/10 for 80% of the measuring diameter

Options

  • μShape OWI Software for fringe analysis
  • 12" calibration standard made of zerodur (λ/20)
Technical Data
OWI 300 PLAN
Application

Non-Contact Testing and Measuring of Plano Surfaces

Measuring Height0 mm - 270 mm
Measuring Range Diameter0 mm - 304.8 mm
Note Air Pressure max. 60l/h consumption
Measuring Accuracyλ/10 (depending on reference sphere)
Air Pressure Requirement8 bar
Power Requirement (others on request)230 V / 50 Hz / 10 A
DimensionsWidth: 1600 mm, Height: 2230 mm, Depth: 1200 mm
Weight (approx.)1228 kg
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
