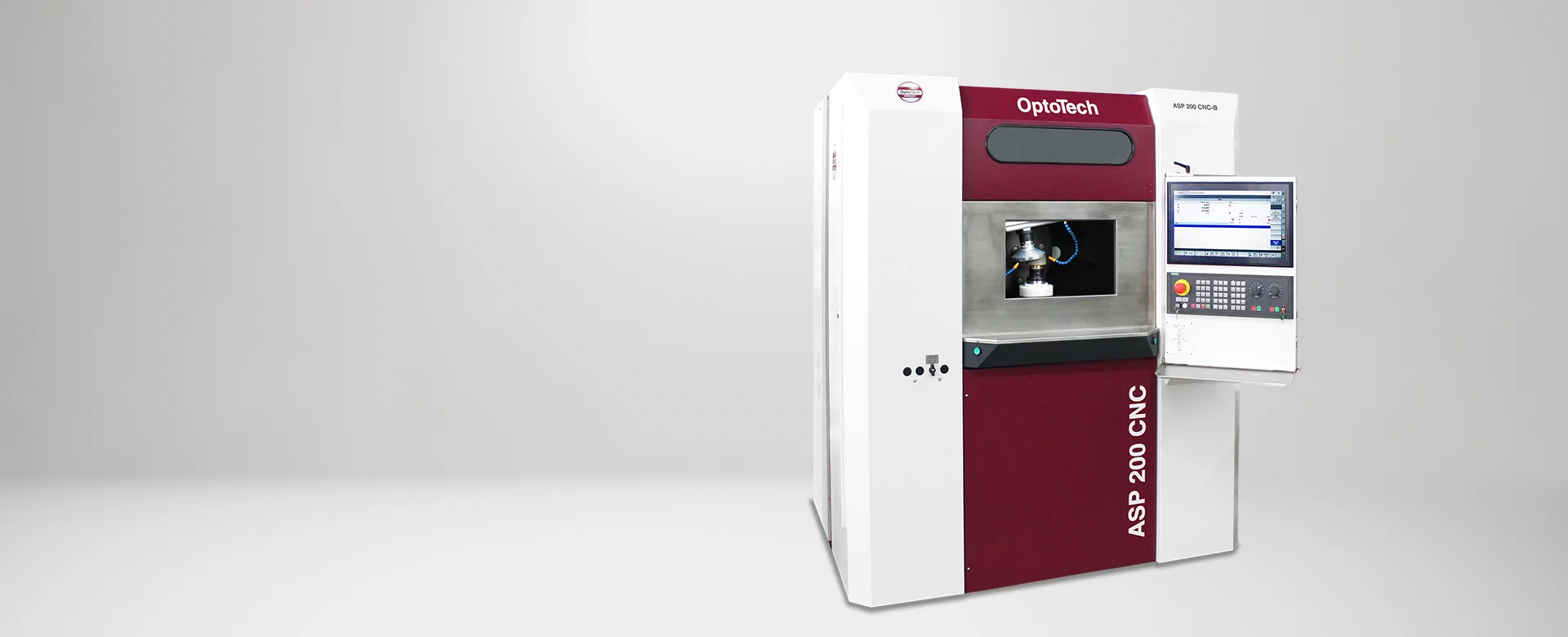

ASP 200 CNC-B
The OptoTech 4-axis polishing machine ASP 200 CNC-B is a basic, but universal usable polishing machine for spheres, aspheres as well as 3D-surfaces.
Precision optics
CNC
Polishing
Contact request
Highlights
- 4 axis CNC controlled oscillation in the asphere centre point
- 1 vertical workpiece spindle and 1 horizontal spindle for polishing tools
- High dynamic servo drives in all axes
- OptoTech AspheroSpeed® Polishing Technology
- Processing with form tools (spherical surfaces) or zonal topographic tools (aspheres)
- Short set-up times due to Microsoft Windows operating system with OptoTech user interface and optional OptoTech PolyCAM software package
System advantage
- Optimized machine kinematics for processing aspheres with very reproducible results
- Rigid, low torsion machine construction on a low vibration cast iron basis
- Working room Teflon coated for easiest cleaning
- Quick and precise tool change due to Hydro-Expansion Chuck Technology
- Short set-up times due to Microsoft Windows operating system
Options
- OptoTech PolyCAM software package
- Remote diagnosis technology
- Interface to Modern Profile Measuring Systems (e.g. Taylor Hobson Talysurf PGI Series, Mahr MarSurf
