DS 100

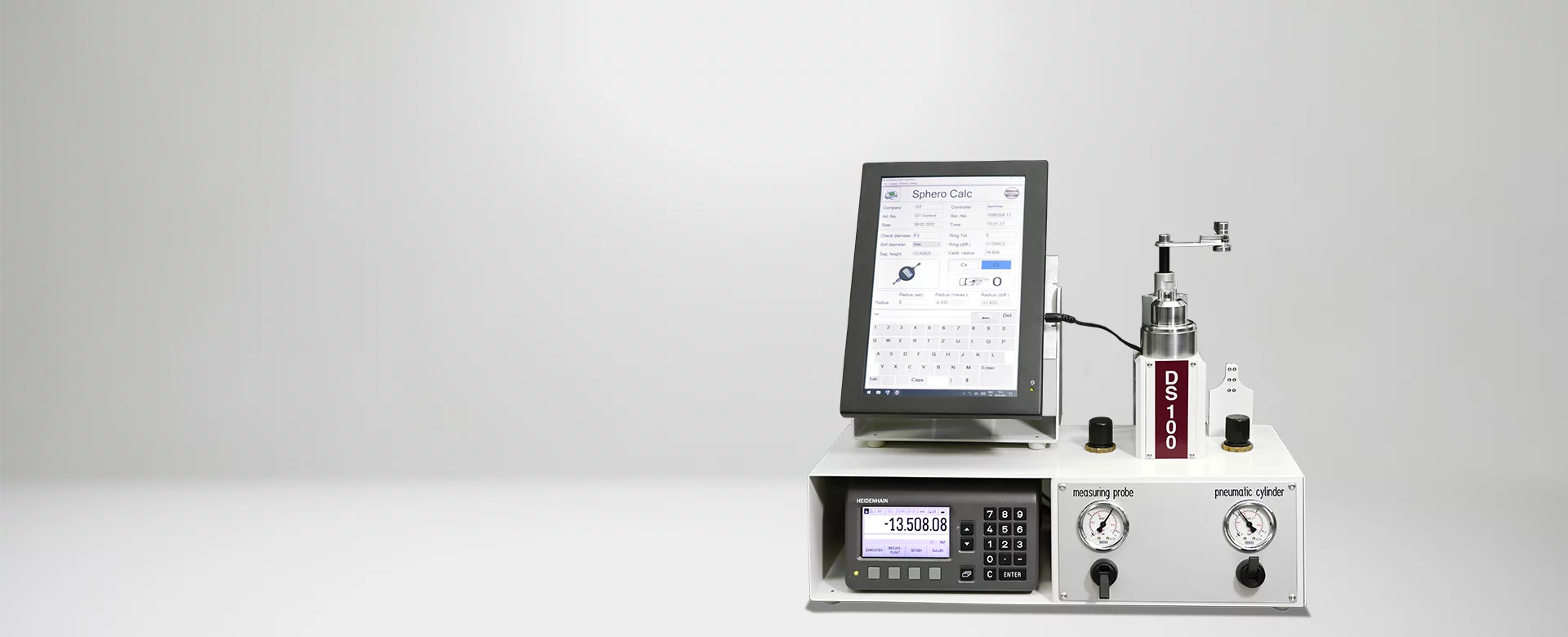

The Digital Spherometer Unit DS 100 is the ideal workshop tool for mechanical measurement of radius of curvature. Its touch panel PC guarantees easy handling and reliable documentation.
Metrology
Tactile
Radius Measurement
Contact request
Highlights
- The Digital Spherometer Unit DS 100 is the ideal workshop tool for mechanical measurement of radius of curvature

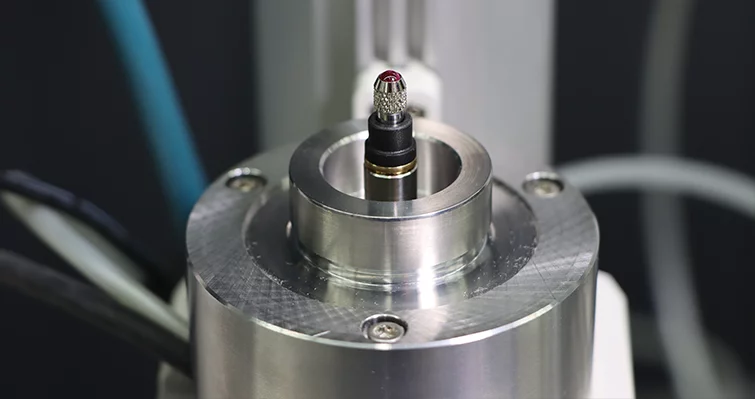

- Digital Spherometer with Heidenhain measuring sensor
- For measuring cx and cv surfaces

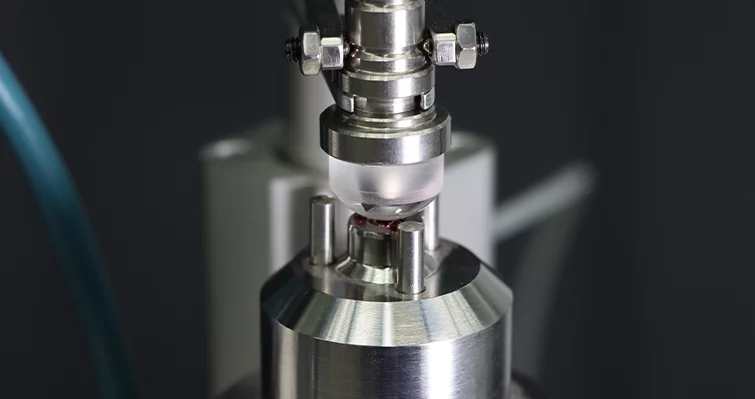

- Able to measure grinded and polished surfaces as well as polishing tools
- Air pressure control prevents damage of probe surfaces, while quality measurements are guaranteed
- Including compact Touch-Panel-PC, mounted on adjustable stand

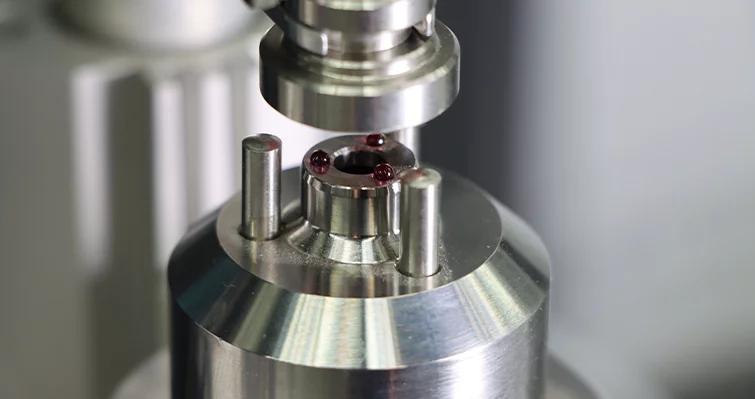

- Different 3 point supporters available in 8, 20, 40, 60, 90 & 120 mm diameter
System advantage

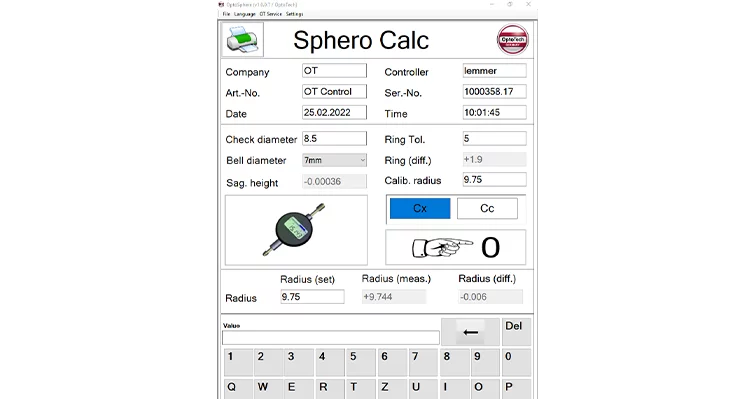

- Fast and easy to use radii measuring software „Sphero Calc“ with convenient protocol function
- Touch panel PC guarantees easy usage and reliable documentation
Process characteristics
Radii measuring software „Sphero Calc“ with convenient protocol function:
- Input Data: Company, inspector, article no., serial no., date, time, target radius, test object diameter, reference circle of the measuring ring etc.
- Output Data: Actual radius, radii difference, ring difference, sagitta
- All data can be exported to Microsoft Excel for reporting purposes
Options
- Counter-pressure piece for test object on pneumatic lifting and swiveling cylinder
