MSI 300
The new multifunctional Stitching Interferometer MSI 300 was especially designed for testing high aperture spheres up to diameter 300 mm.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights
- The new multifunctional Stitching Interferometer MSI 300 was especially designed for testing high aperture spheres up to diameter 300 mm. Optional measuring of plano optics up to 300mm
- Rigid granite base and passive air bearings
- High precision radii slide in Z-Axis adjustment
- MAHR MarOpto FI 1100 Z Interferometer Module

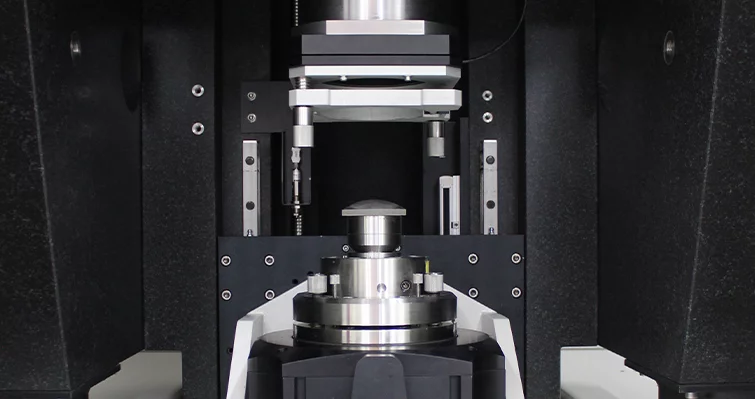

- Interferometer module in inverse design with X/Y-Axis cross slide

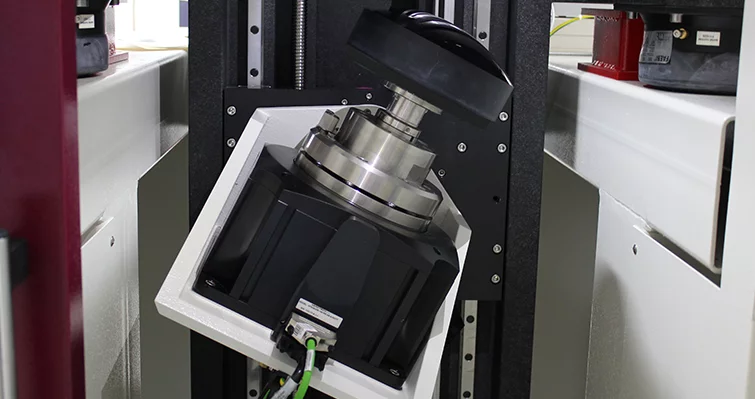

- High resolution swivel axis (B-Axis) for positioning of high aperture spheres in the optical path
- Direct-driven rotation axis (C-Axis) to rotate high aperture spheres and optional plano surfaces in the optical path

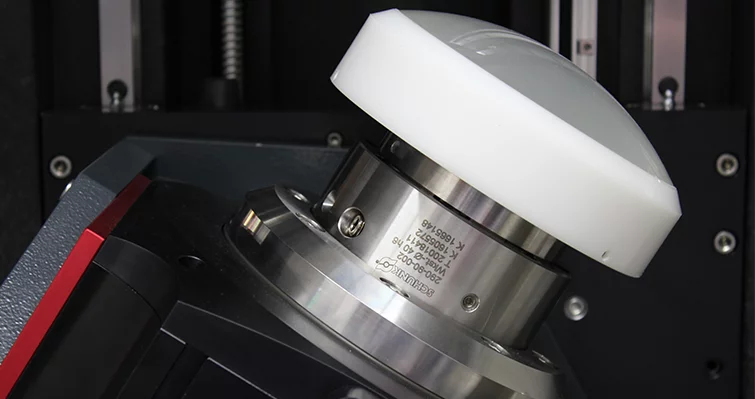

- Standard workpiece holders HD-40 (others available as an option)
- OptoTech Inspect Mini EL-F Digital 4“ Fizeau-Interferometer module (others on request)
- Compact design with integrated PC working place
- Handling: Conventional (manual) or with automatic axe control by using μStitch MSI-Software
Options
- Various Fizeau Reference Spheres
- Table for plano optics measurement up to Ø 300 mm
- Various workpiece holders
