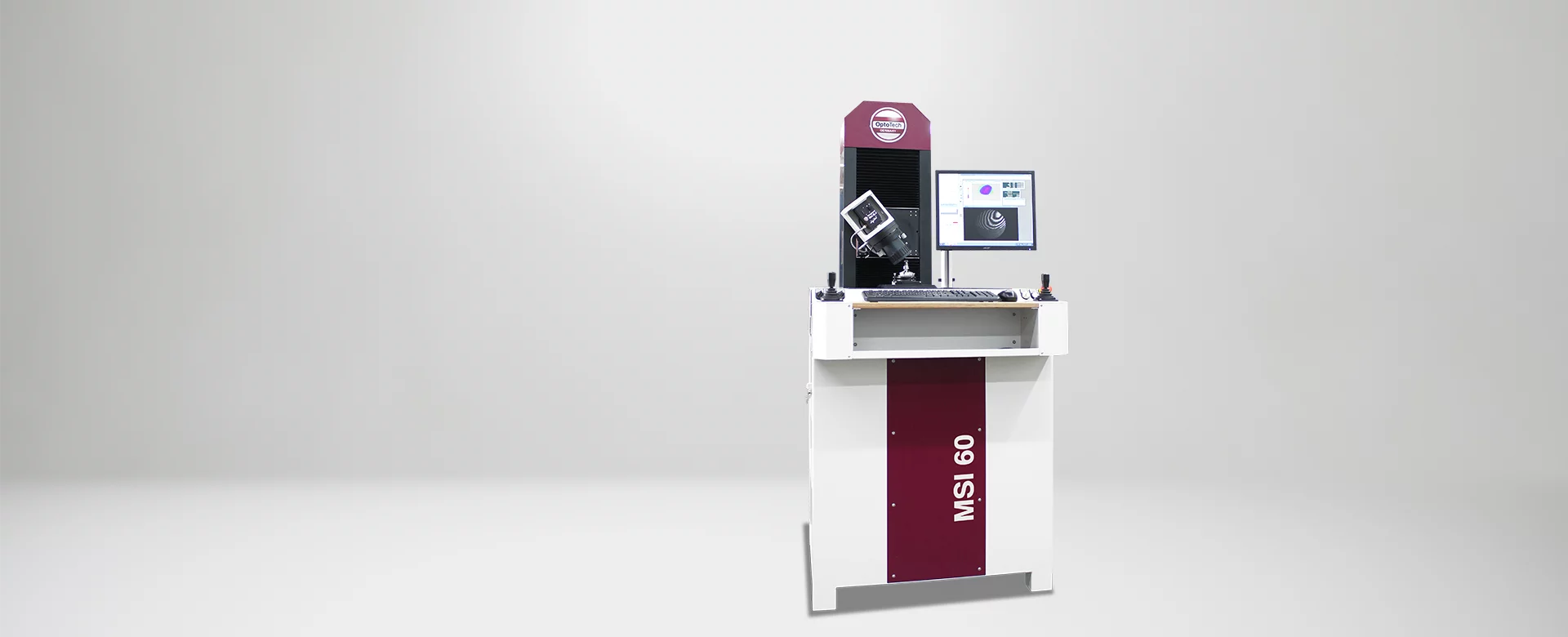

MSI 60
The new Multifunctional Stitching Interferometer MSI 60 was especially designed for testing high aperture spheres up to diameter 100 mm. Moreover, as an option, plano surfaces up to diameter 100 mm can be measured.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights
- Rigid granite base and passive air dampers
- High precision radii slide in Z-Axis configuration

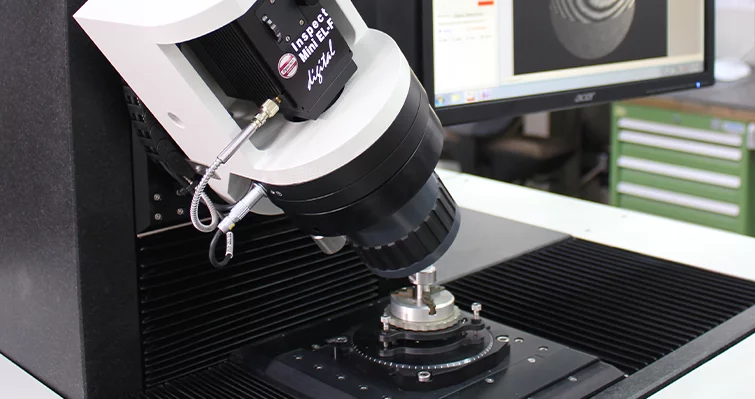

- Interferometer module in inverse design mounted on B-Axis
- High resolution swivel axis (B-Axis) for positioning the Interferometer unit perpendicular to the substrate surface
- Direct-driven rotation axis (C-Axis) to rotate high aperture spheres and plano surfaces in the optical path
- OptoTech Inspect Mini EL-F Digital 2“ Fizeau-Interferometer module
- Compact design with integrated PC workstation
- Handling: Conventional (manual) or with automatic axis control by using μStitch MSI-Software
- OptoTech Interferometer Software μShape OWI for automatic lens evaluation
Options

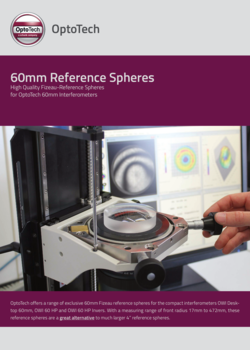

- Various Fizeau Reference Spheres
- Tilting table for adjustment of plano surfaces

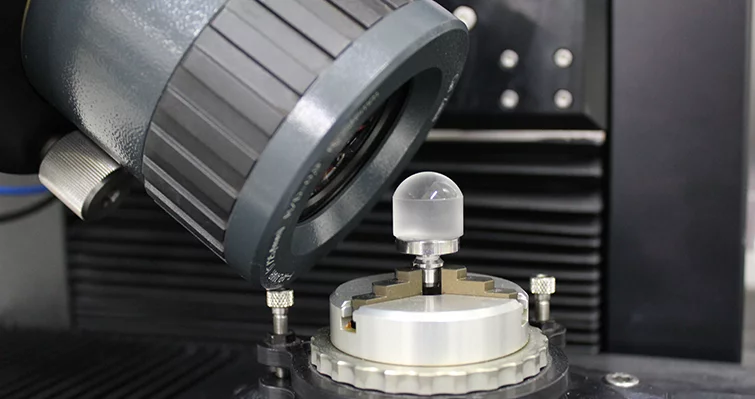

- Various workpiece holders: Collet chuck, 3 jaw chuck, HD12-, HD25 chuck
