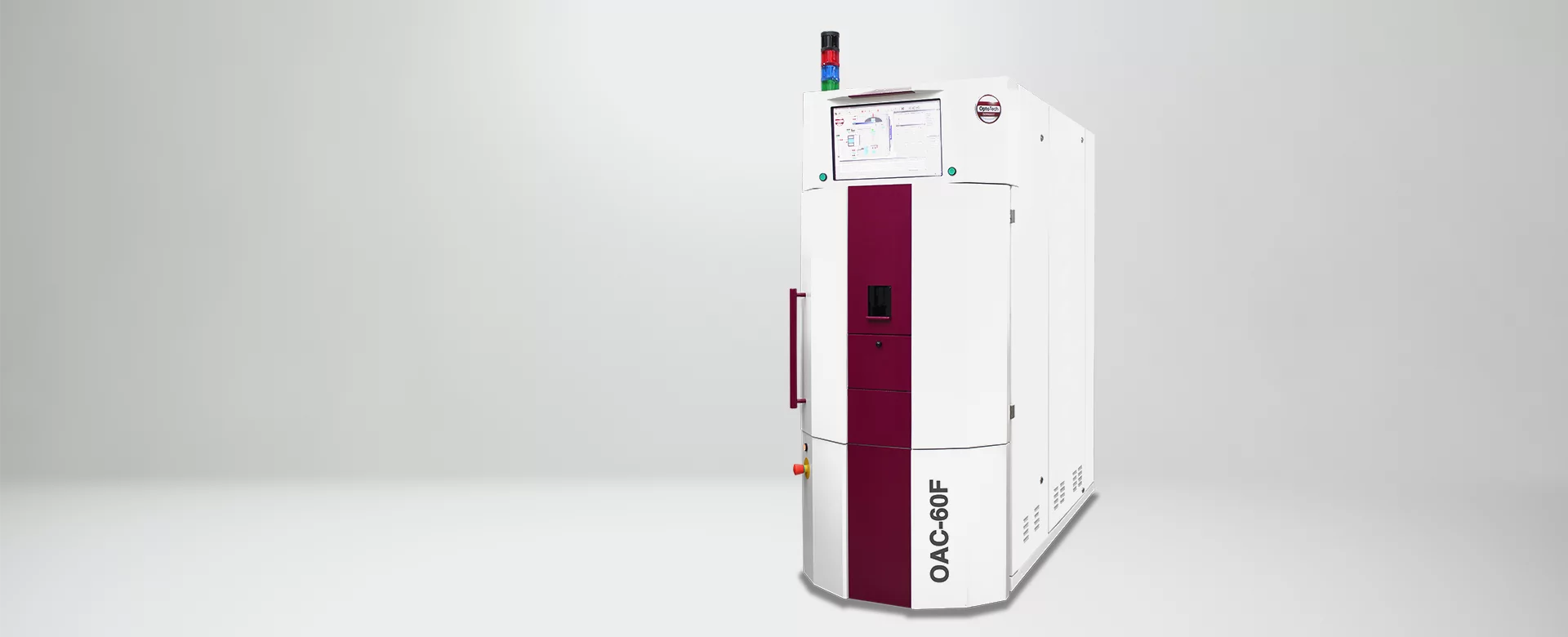

OAC-60F
High Quality Thin Films on a Small Scale
The OptoTech OAC-60F evaporation coater is used for the application of high quality thin films like antireflective (AR) coatings and other kinds of interference filters on optical components on a small scale. The OAC coating system is characterized by the product quality for which OptoTech is known, ease of use, and exceptional reliability in the daily production operation.
Coating
AR-Coating
Contact request
Highlights

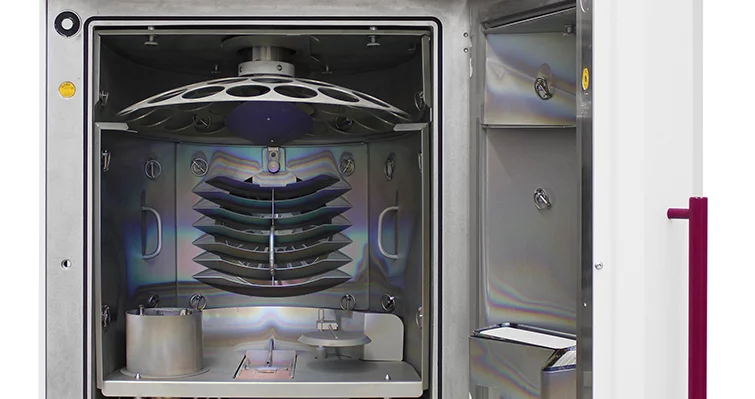

- High quality stainless steel vacuum chamber with electro polished surface
- High quality coatings incl. thermal shift free layers
- Pumping system with turbo pump and pre-pump
- Advanced pumping with Meissner trap + Polycold
- Process control unit with operator interface
- Electron-beam evaporation system
- Thermal evaporation source
- Ion-source or optional plasma source
- Thin film deposition control with quartz crystal method
System advantage
- Perfect AR-Coating Solution for Low Volume and Micro-Optical Applications
- Wide range of competitive coating processes available
- Easy-to-operate, highly flexible and with very short cycle times
Options
- Wide range of coating consumables and coating materials available
