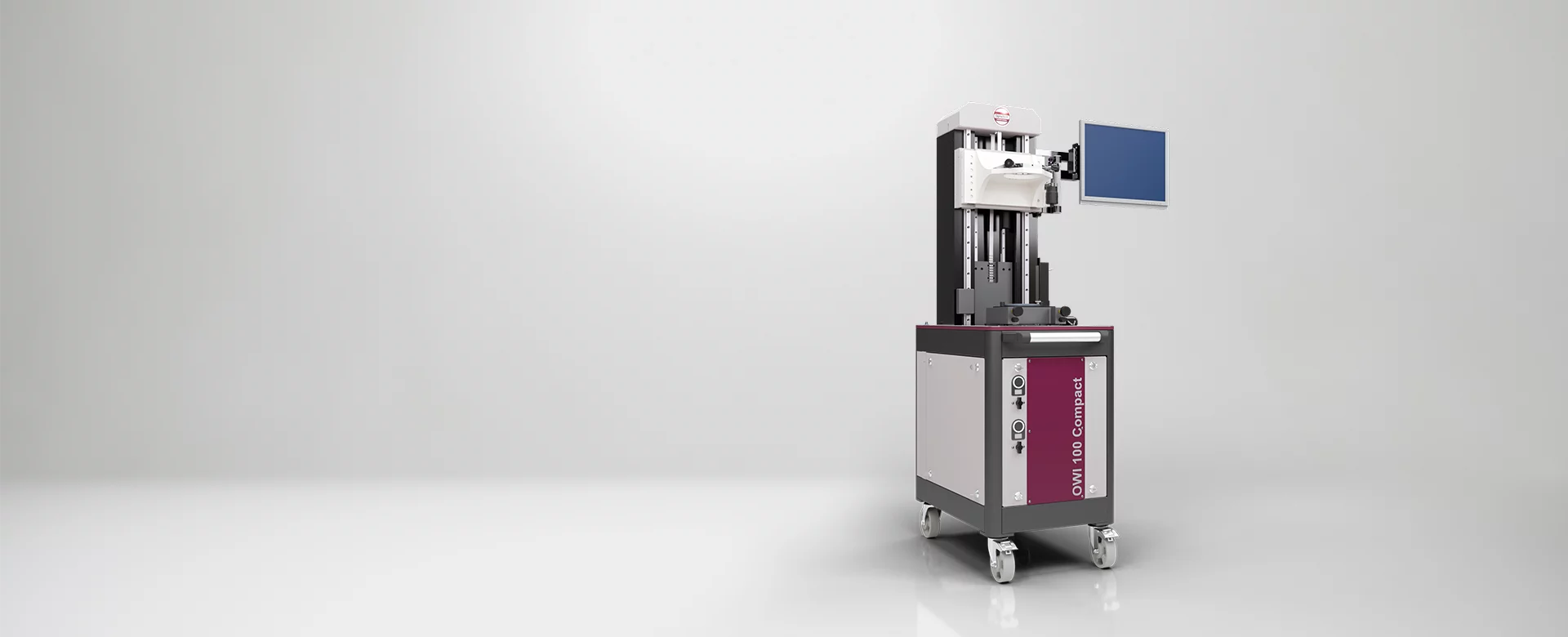

OWI 100 Compact
Competitive and compact workshop interferometer for spherical components with manual height adjustment.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights

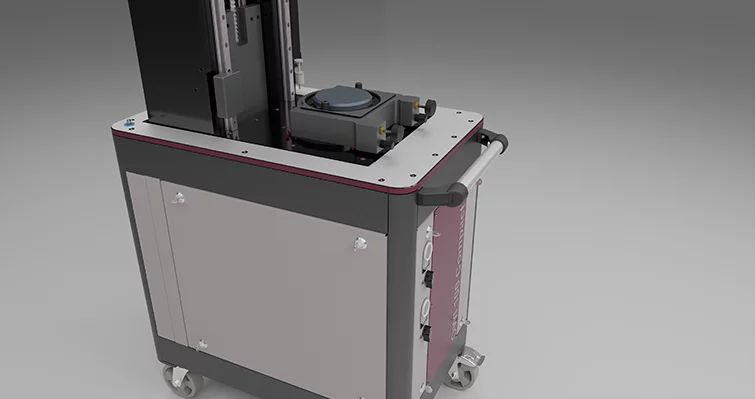

- Highly rigid granite measuring setup with integrated isolation system on a stable machine base frame for maximum precision and vibration-neutral measurements in a production environment

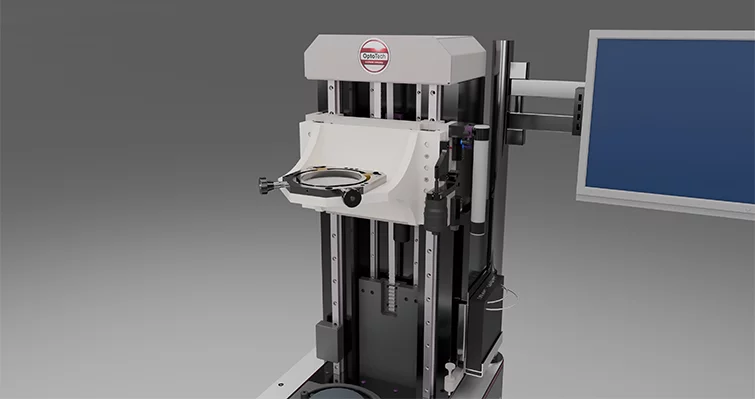

- Joystick for infinitely adjustment of the measuring table with clearance-free bearings on linear slides
- Clamping of the measuring table via spring elements on the guide rail, pneumatically adjustable via button valve on the measuring table‘s handle
- Easy positioning due to weight balancing
- Manual fine adjustment using fine thread screw with high precission roller guides
- Diffrent interferometer module available e.g. Zygo VeriFire 4“
- 4“ bajonett connection, compatible with ZYGO
System advantage
- Competitive price-performance ration
- Highest precision and vibration-neutral measuring results in a production environment
Options
- Tip and tilt table for plano measuring
- Heidenhain linear measuring system for simplified positioning of measuring slide
- Phase shifter and software evaluation OptoTech μShape OWI for maximum accuracy and logging
- Inspect Mini 4“
- Zygo Verifire 4“ + Zygo MX
