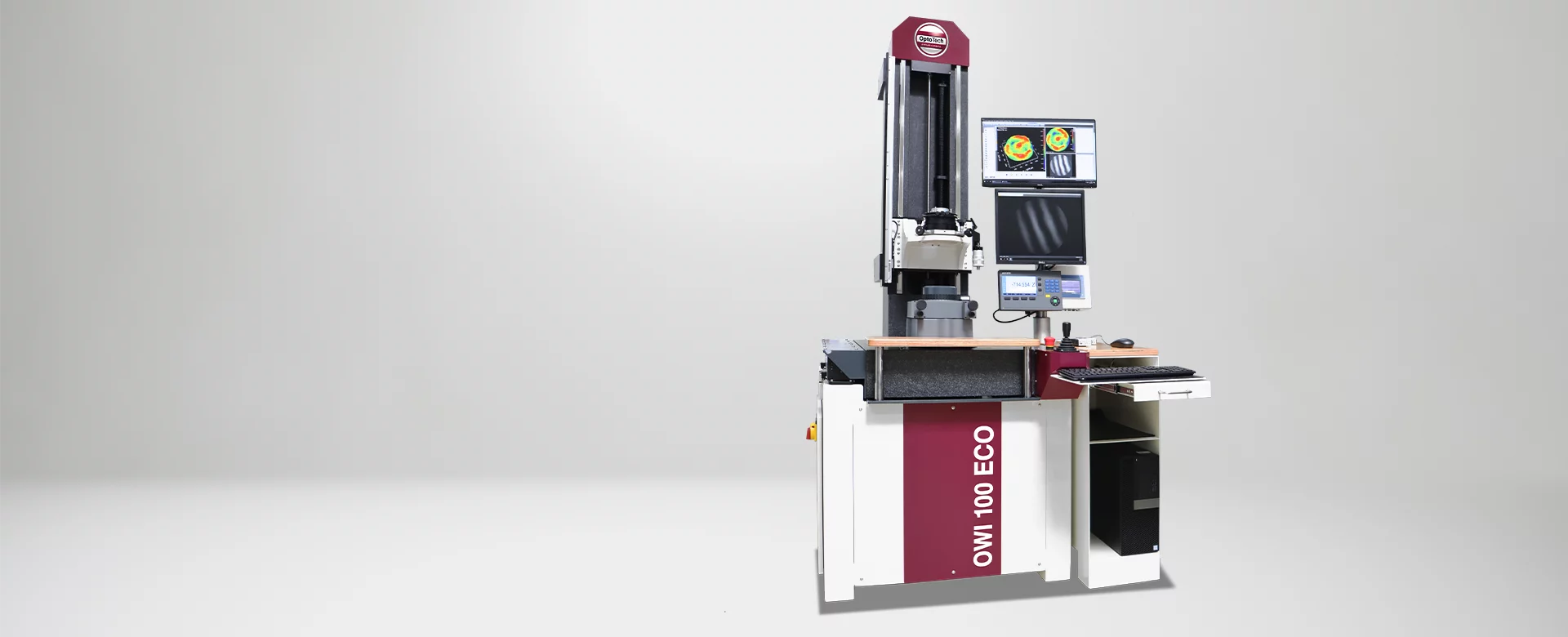

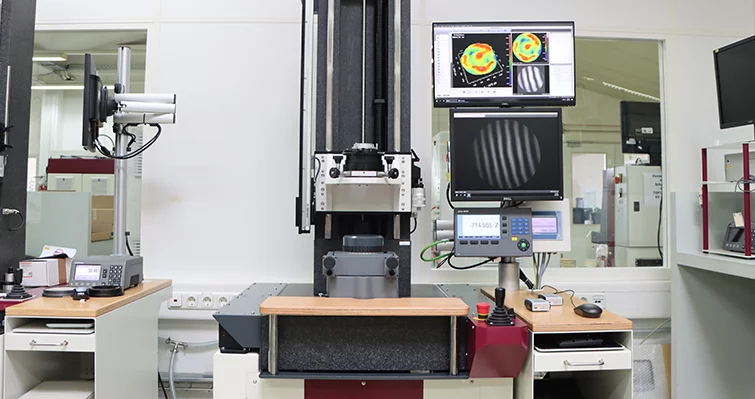

OWI 100 ECO
High precision and low cost workshop interferometer OWI 100 ECO for spherical and plano optics with driven motion for Z-axis.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights

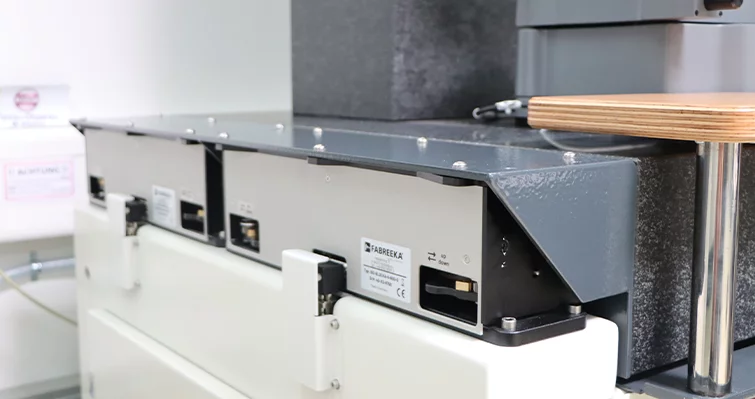

- Rigid granite tower with integrated active isolation system for maximum precision and vibration-neutral measurements in the production environment

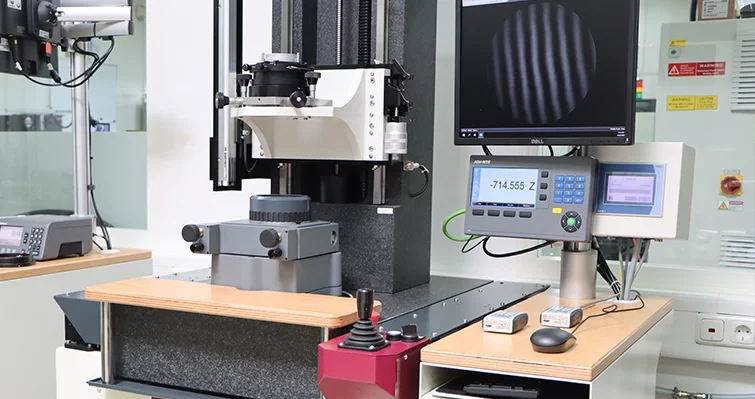

- Joystick for infinitely adjustment of the measuring table with clearance-free bearings on linear slides
- Table driven by servo motor and ball screw spindle and speed adjustable by joystick (infinitely variable)

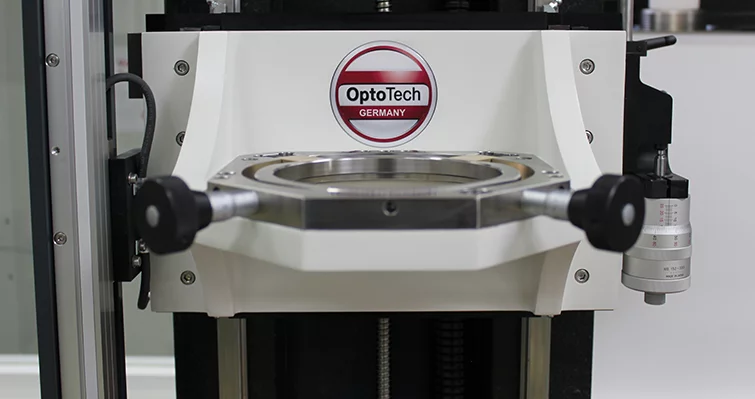

- Manual fine adjustment using fine thread screw with high precission roller guides
- 3-Axis table (only Z-Axis in basic machine; different X-Y versions on option)
- Various Interferometer modules: MarOpto 4", Zygo VeriFire
- 4“ bayonet interface for reference spheres, compatible to Zygo, Zeiss F-Aplanar etc.
System advantage
- Ideal economic cost/performance ratio
- Highest rigidity due to granite base and passive air bearing elements
- Fine adjustment by precision drive and clearance free precision bearings
Options
- Tip and tilt table for plano measuring
- Phase shifter and software evaluation OptoTech μShape OWI for maximum accuracy and logging
- Heidenhain linear measuring system for accurate absolute determination of radii; mounted near the optical axis to adhere to the „Abbe“ comparation principle
- Inspect Mini 4“
- MarOpto FI 1100 + µShape
- Zygo Verifire 4“ + Zygo Mx
