OWI 150 PLAN

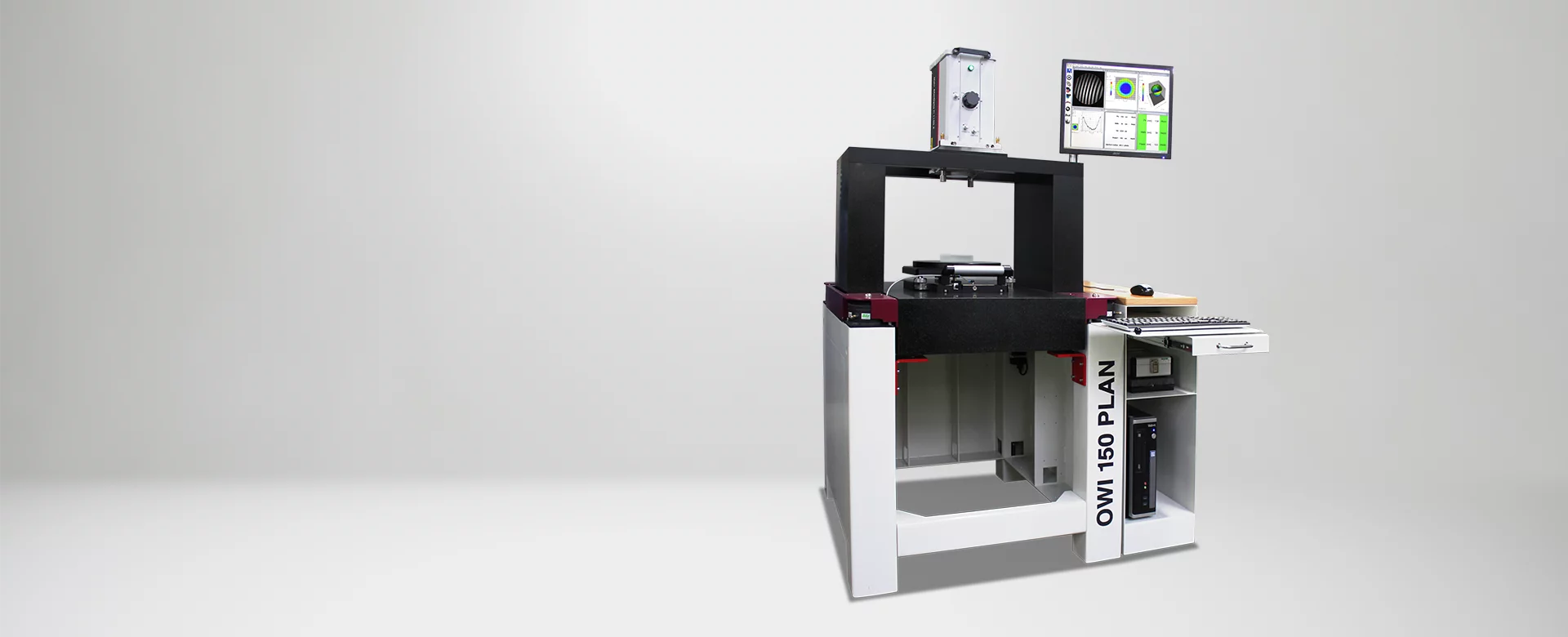

The workshop interferometer OWI 150 PLAN is the ideal measurement system for testing plano single surfaces or lenses produced as multi blocks.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights
- High precision, vibration-absorbing granite base mounted on passive 4-point shock absorption system
- Avoidance of statically related disruptive factors through symmetrical portal structure
- Space-saving integration of the monitor. Monitor table not directly mounted to the measuring structure for better measuring results.

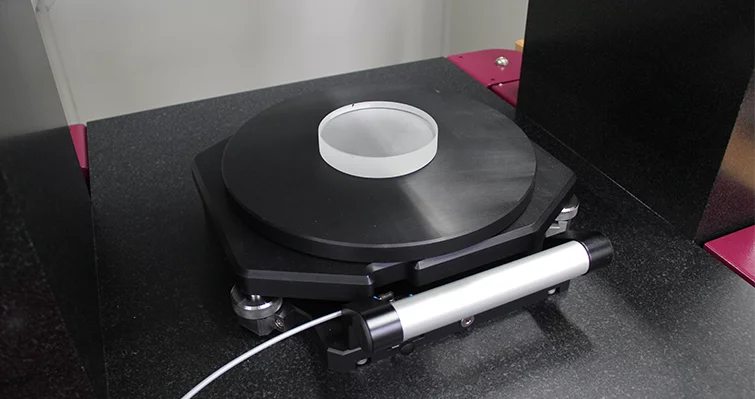

- Smooth, precise positioning of the test object via air bearing slide table with integrated 3-axis fine adjustment
- Adjustable monitor holder

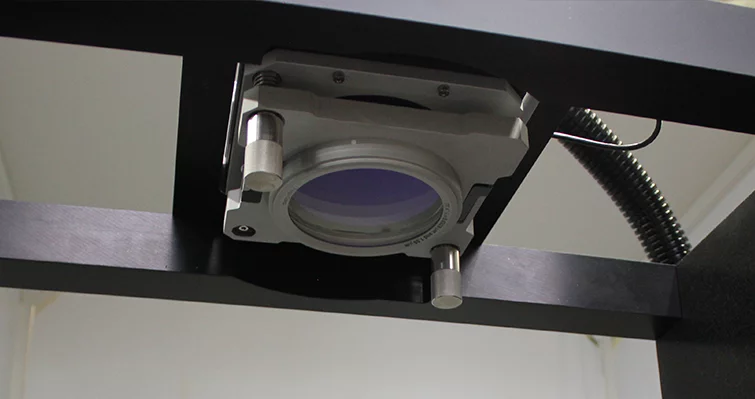

- Different powerful interferometer module options (LT Ultra Modules 4" / 6" or Zygo QualiFire 4" / 6") and compatible software solutions for evaluating your measurement results available
System advantage
- Surface and form error testing according to DIN ISO 10110-5
- Space-optimized footprint
- High precision measuring thanks to sophisticated damping system and optimized kinematics
Options
- Positioning of the measuring objective by means of a sliding stage with air bearings and 3-axis fine adjustment

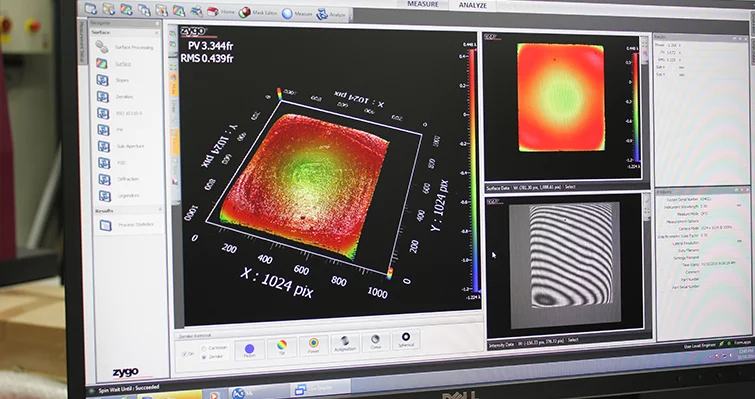

- Software for fringe analysis from Zygo
- Measuring in transmission mode
