OWI 150 XLC
High precision Fizeau workshop interferometer OWI 150 XLC for testing of cylindrical and plano surfaces. Optimized kinematics and a large working range make this measuring machine an indispensable tool for the production of high-end optics.
Metrology
Interferometry
Form Measurement
Radius Measurement
Contact request
Highlights
- Optimized for use at the production level
- Measurement setup made of natural hard stone in portal construction, passive air-bearing, level-regulated
- Inverse mounting of the interferometer module on the X-axis
- X / Y / Z / B axis adjustable by motor. Movable via joystick. Measuring positions can be saved
- For CX and CV cylinders and plano optics
- Collimated wavefront will be split in 1 dimension by using a computer generated hologram (CGH) to create a cylindrical wavefront
- Including integrated PC workstation

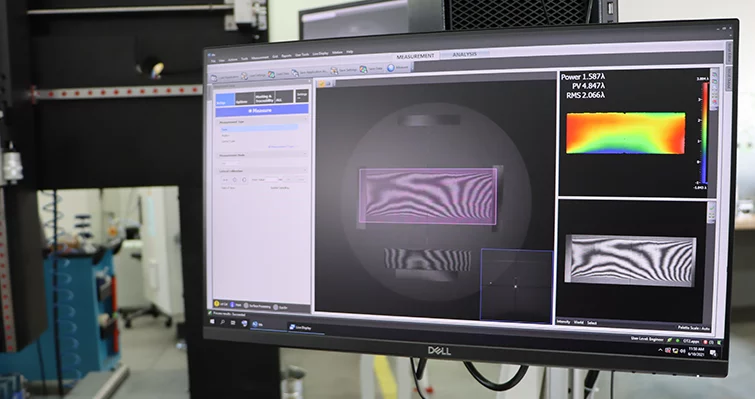

- Software by OptoTech in combination with Zygo MX
- Fully automatic measurement of individual cylinder segments
System advantage
- Extended movement range, ideal for large cylindrical and plano optics
- Measuring scope covers precise fringe analysis of large optics
- Extended axis offer an unparalleled large working range at maximum measuring accuracy
- CGH can be used for multiple components
- Measuring postions and settings can be saved in the system
- Optimized kinematics enables fast positioning
- Robust damping system for stable handling and optimized for use at the production level
- Interferometer can be loaded from above using a crane
Options
- Various Zygo 6“ Interferometer Modules, e.g. Zygo VeriFire 6“
- Various Zygo 6“ Reference Spheres, e.g. Zygo TF 6“ Plano ʎ/20
- Various workpiece receptions
