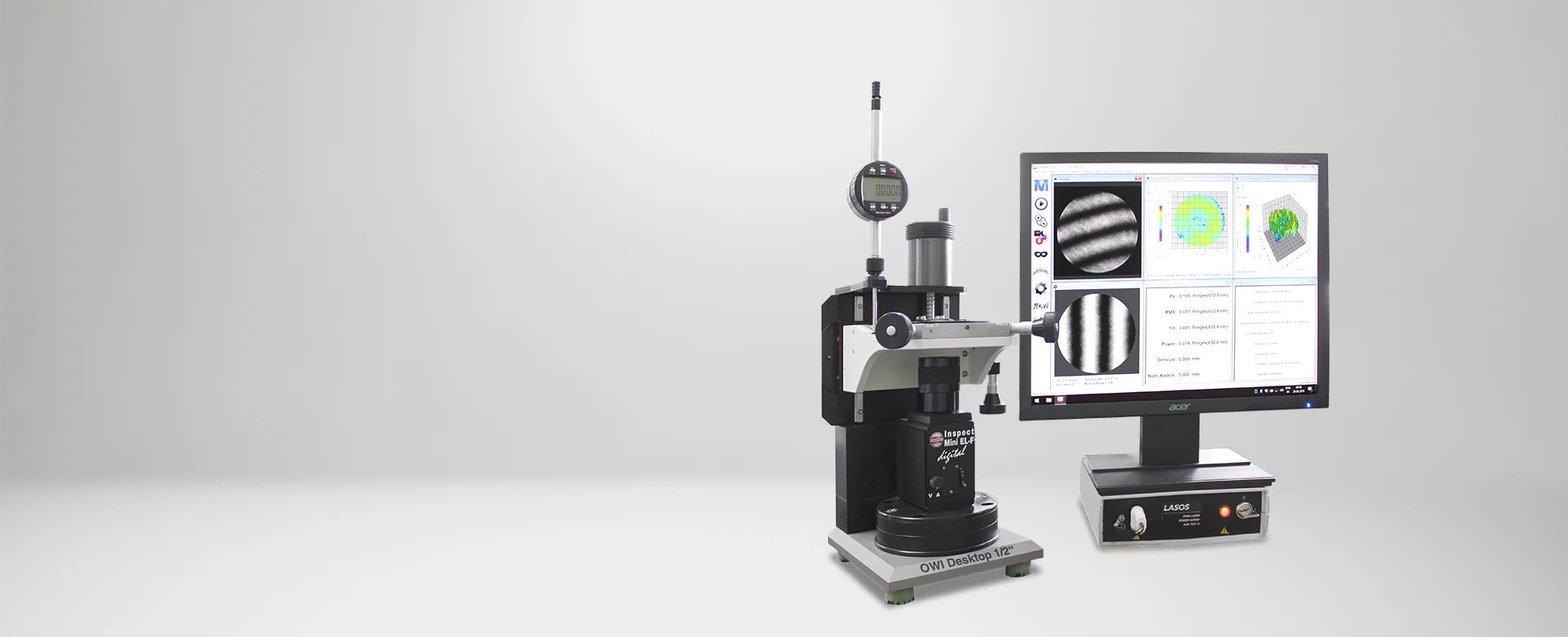

OWI Desktop 1/2"

The compact workshop interferometer OWI Desktop 1/2“ is the ideal measuring machine for endoscopy and micro production.

Metrology
Interferometry
Form Measurement
Radius Measurement

Highlights

  • Non-contact measuring system for lenses, no damage to surface due to non-contact measurement technology
  • Sturdy, vibration cushioned design
  • Safer and more precise than test plates
  • Compact design, can easily be co-located directly adjacent to the Polishing Machine

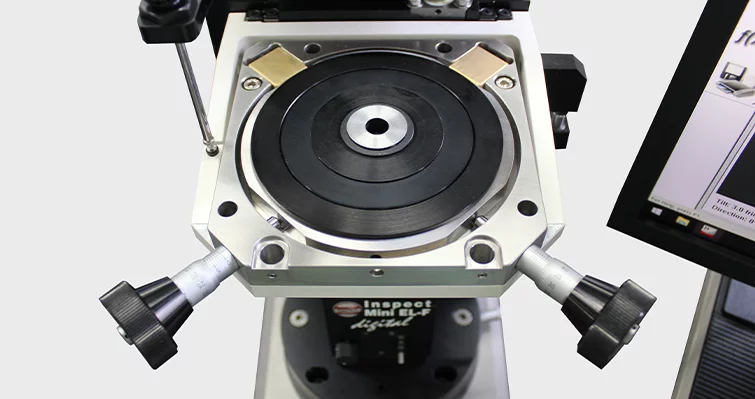

  • 3-axis fine-adjustment stage with micrometer screws

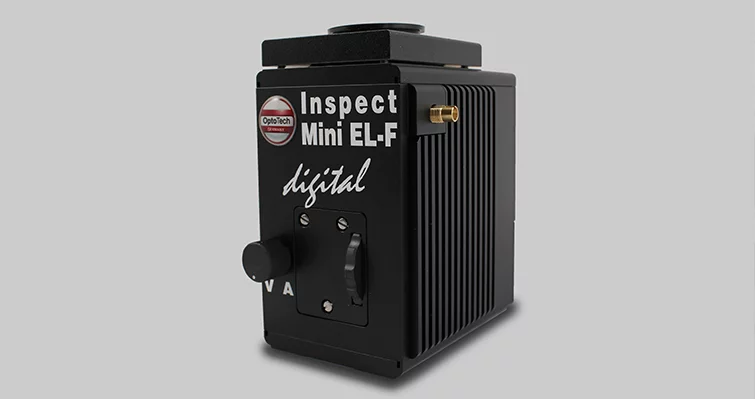

  • Includes our high class Interferometer module OptoTech Inspect Mini EL-F digital

System advantage

  • Easy handling
  • Short measuring cycles
  • No damage to surface
  • Compact design

Options

  • Integrated radii measurement due to precision gauge
  • Professional fringe evaluation software: OptoTech Fringe OWI (static) or phase shifting (OptoTech μShape OWI)
  • Different reference spheres available
  • Various lens holders
OWI Desktop 1/2"
Application

Non-Contact Testing and Measuring of Spheres

Measuring Range Diameter (½" reference sphere)0 mm - 13.6 mm
Measuring Range RadiusDepending on reference sphere
DriveManually with microscope drive
Interface½" reference spheres with M25x0.75 thread
Measuring Accuracyλ/10
Reference SpheresF-Aplanar F/D 0.59 / F/D 1.0
Travelapprox. 70mm
DimensionsWidth: 230 mm, Height: 435 mm, Depth: 230 mm
Weight (approx.)6 Kg
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
