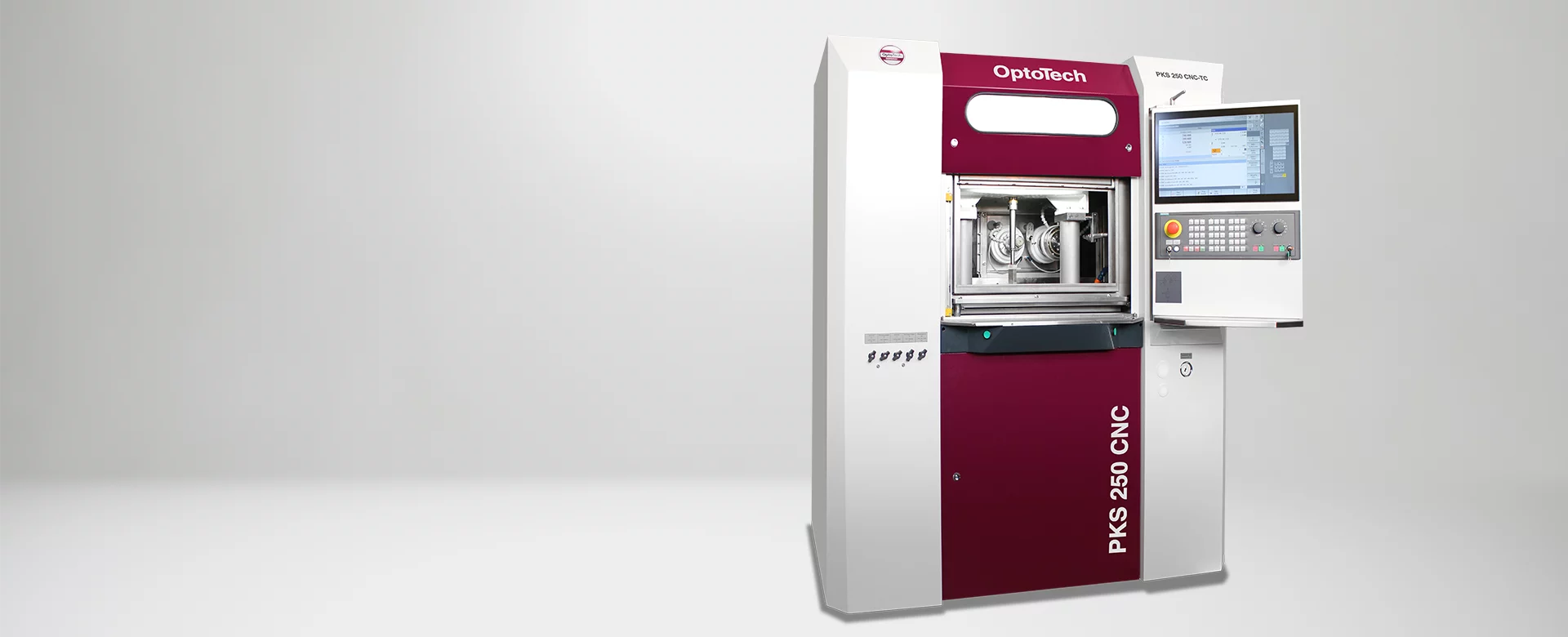

PKS 250 CNC

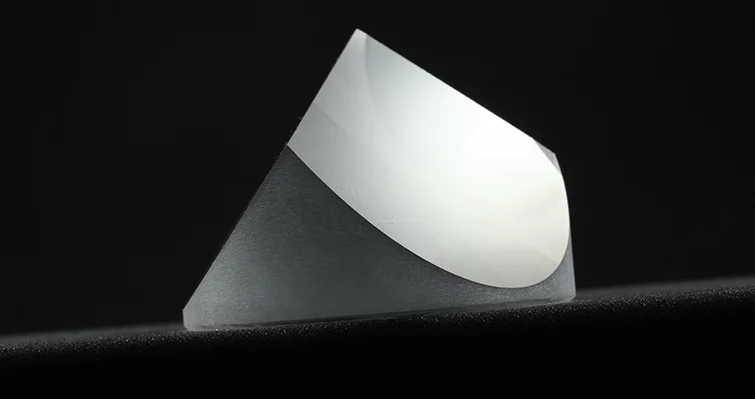

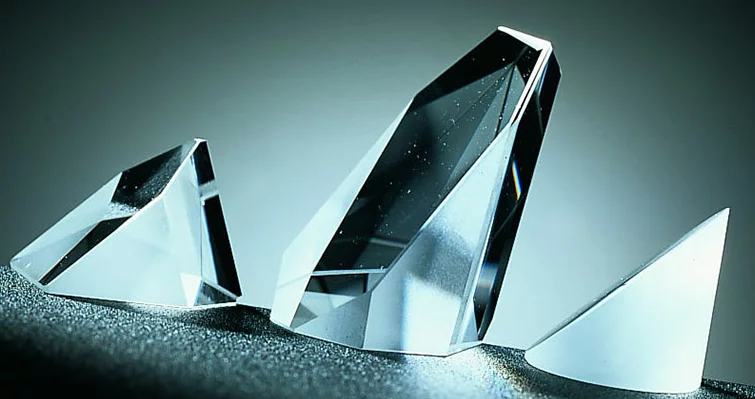

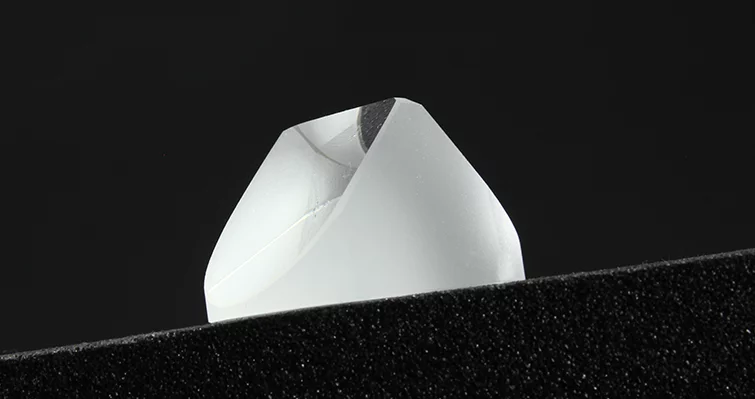

High precision round cycle-prism processing machine PKS 250 CNC for contour processing of any kind of prisms or prism similar components made of glass or ceramics, using a two step grinding process.
Precision optics
CNC
Grinding
Contact request
Highlights
- Multi purpose, 4-axis CNC machine that can be used for generating contours on prisms, generating cylinder optics and aspheres (AspheroTool Software Package required)

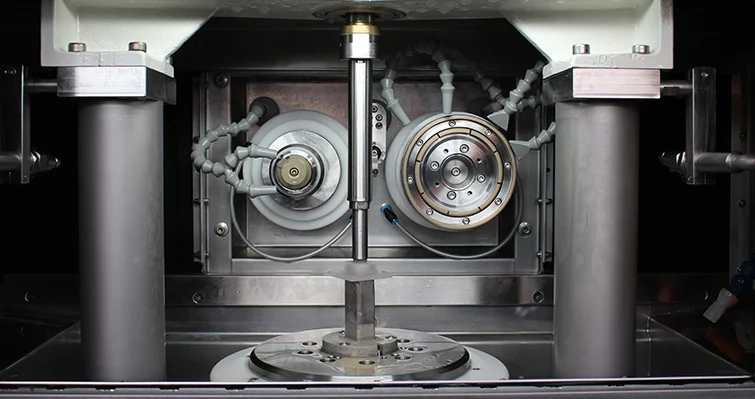

- Tool spindle with KombiTool Technology (KombiTool / KombiTool+ [link]) for high precision surface processing (Pre- and fine grinding in one tool without changing the tools); Edging and chamfering possible
- Precise plano surfacing to polishable quality due to optimised grinding parameters with multi-cut technology, adjusted speed and feed rates for all spindles
- Angular accuracy of the C-Axis ± 10"
- Gantry with hydraulic clamping system for prisms
- Two-stage machining in one operation using combination tool technology (KombiTool Technology)
- Highly dynamic AC servo drives for all axes
- Minimal set-up times thanks to dialog menu-guided operation
- Tool clamping via direct flanging or with optional hydro-expansion clamping technology (Ø 40 x 60 mm DIN)
- Directly flanged tools at KombiTool Technology
- Optimization of the grinding process through multi-stage cuts with adapted feed rates and speeds of all spindles
Options
- High resolution C-Axis Encoder available
- Generating cylinder optics and aspheres (AspheroTool Software Package required)
- Other tool connection interface on request
