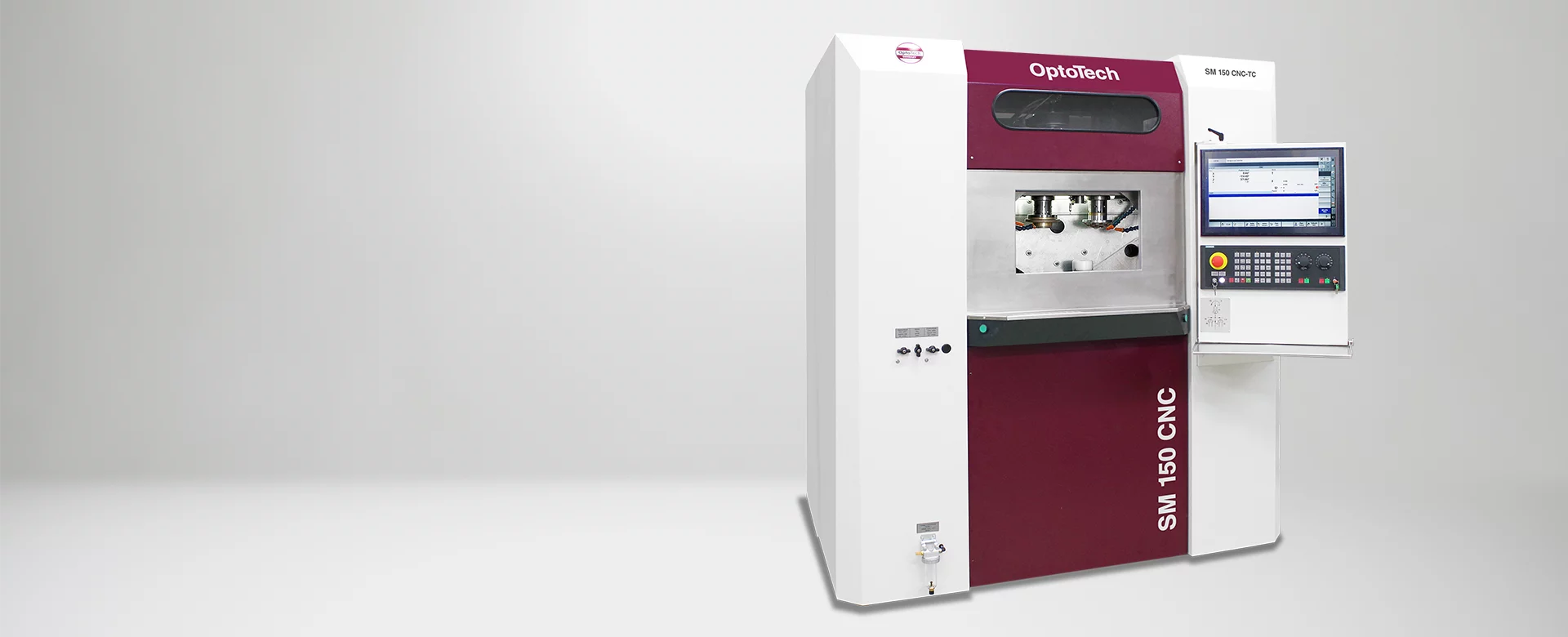

SM 150 CNC-TC

The OptoTech precision grinding machine SM 150 CNC-TC is perfectly suited for flexible and universal production of spherical optical components. The SM 150 CNC-TC is the perfect complement to our SPK 150 CNC polishing machine, delivering a balanced cycle time for grinding and polishing. This combination forms a production line consisting of only two machines with no idle time while one machine waits for the other.

Precision optics

CNC

Grinding

PDF Download

Contact request

Highlights

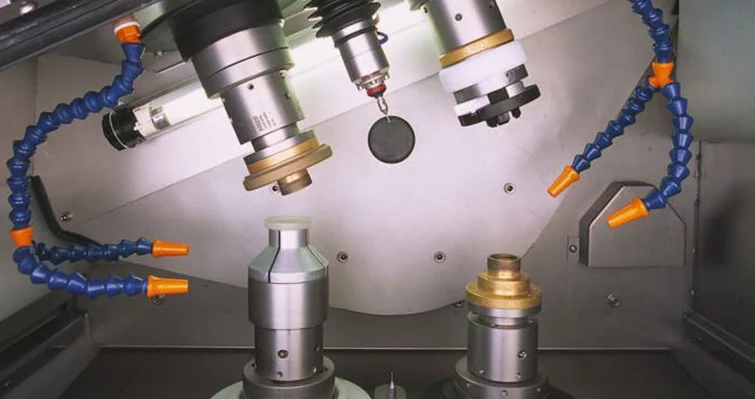

The machine can be delivered as 3 or 4 spindle machine and offers maximum flexibility
3 CNC axes (X, Z, B); C-axis as an option
3 different versions available: TwinCut (Standard); DoubleTwo-3C; DoubleTwo-Invers

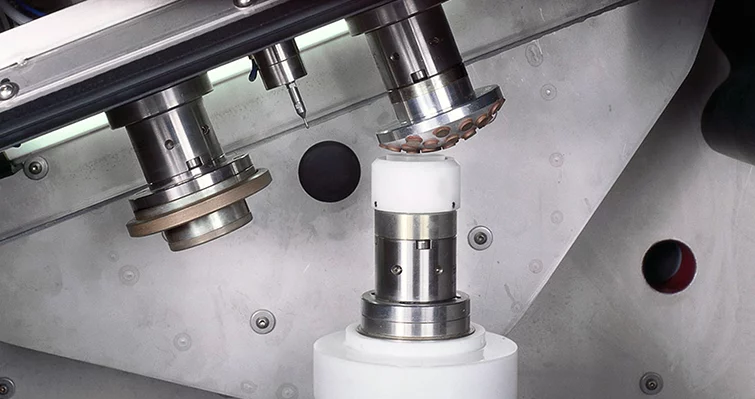

Direct driven spindles for a better performance, smooth running and less vibrations
Pivoting angle +/- 55° (+48°/-55° for version with automation)
Coolant control
LAN-Connection
Preparation for filter exhausting device

System advantage

Innovative 3C Technology (pre-, fine- and finest grinding with pellet tool) for even better surface qualities and reduced polishing cycle times up to 30-50%
Direct driven spindles for a better performance, smooth running and less vibrations

Process characteristics

Technologies:

AST (Advanced Setup Technology, aka: Touch Setting)
3C-Processing (Finest-grinding with pellets; DoubleTwo version with integrated dressing spindle)
Radius processing
3D-grinding for optimal utilization of the grinding tool
Edge processing (diameter and chamfers)

Options

Machine Options:

Machine versions TwinCut or DoubleTwo
C-Axis
Automation (Portal loader with disc magazine)
Processing of complex edge geometries using OptoEdge
Processing aspheres
Remote control
Upper measuring pin for center thickness and diameter
KombiTool or KombiTool+ [link]

Additional Accessories (available as an option)

Coolant tanks (with or without centrifuge)
Chiller with coolant tank
Filter exhausting device with coolant recirculation
Vacuum device

Technical Data

	SM 150 CNC-TC
Application	Generator for Pre- and Fine Grinding of Spherical and Aspherical Lenses
Working Range Diameter	10 mm - 150 mm
Working Range Diameter (aspheres)	10 mm - 200 mm
Working Range Radius	10 mm to plano
Travel B	-55 ° - 55 °
Amount of Axes	3 (X, Z, B)
Control	Siemens Sinumerik 840 Digital Solution Line
Tool Spindle	Speed: 0 - 12000 rpm; Interface: HD 25
Workpiece Spindle	Speed: 0 - 2000 rpm; Interface: HD 25
Vacuum	-0.7 bar
Air Pressure Requirement	6 bar
Power Requirement (others on request)	6 kW / 400 V / 50 Hz
Dimensions	Width: 2000 mm, Height: 1990 mm, Depth: 1850 mm
Weight (approx.)	2450 kg; Without loader
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
