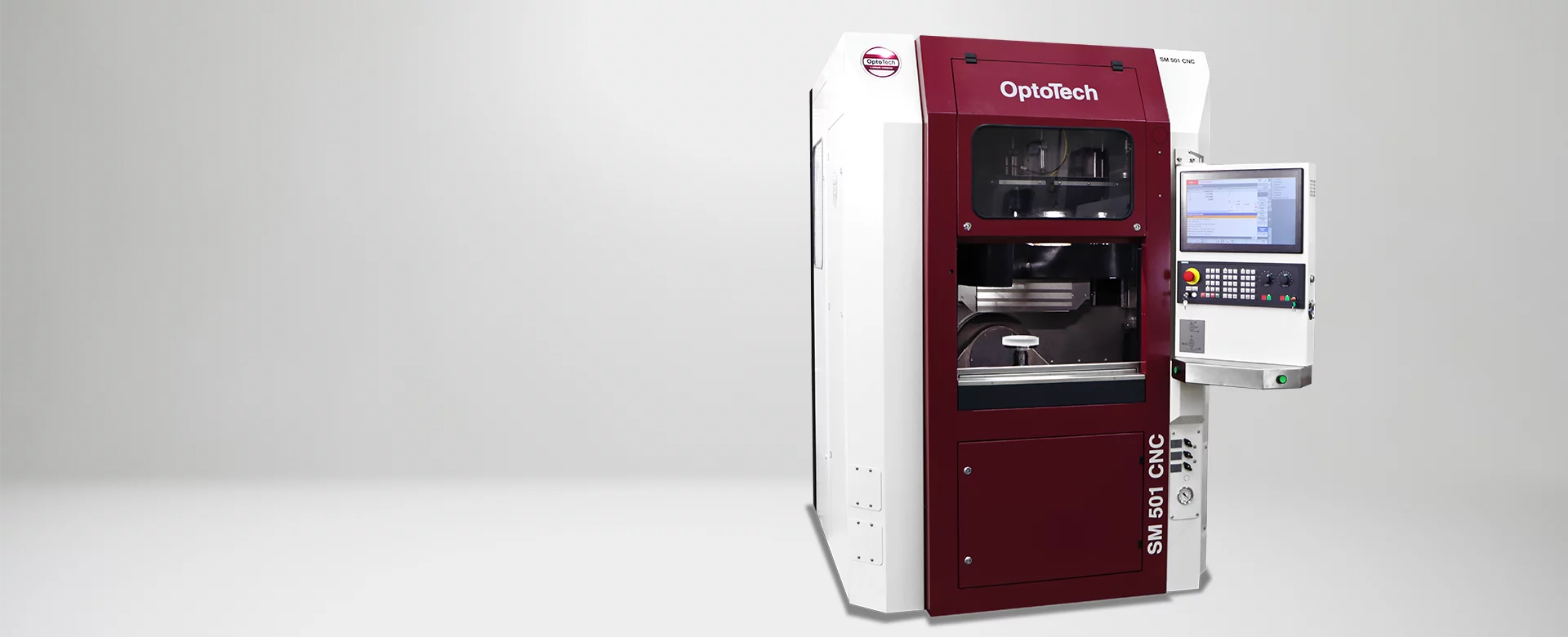

SM 501 CNC
The SM 501 CNC is a CNC-controlled 3-axis grinding machine for processing high precision spherical and plano components made of glass or ceramics.
Precision optics
CNC
Grinding
Contact request
Highlights
- High dynamic AC servo drives for all axes
- Quick and precise tool change due to Hydro-Expansion Chuck Technology (Ø 40 x 60mm DIN)
- Optimisation of cutting process due to multi-cutting steps with adaptable feed rate and spindle speed
- Production of polishing tool bodies
- Microsoft Windows operating system with OptoTech user interface, thereby a minimum of set up times
- Grinding to polishable quality in one cycle due to optimised cutting parameters
- Integrated Edging and Chamfering
System advantage
- Optimisatized cutting process
- Pre-grinding or cut-to-polish finish grinding due to optimized cutting parameters in one working cycle
- Quick and precise tool change
Process characteristics
Technologies:
- AST (Advanced Setup Technology, Touch Setting): Machine measures the contact point of lens/tool, decreasing set-up time
- AFT (Advanced Feedrate Technology): Variable feed rate depending on pre-selected cutting capacity (spindle load)
Options
- Direct driven tool spindle with HSK 63 interface
- KombiTool or KombiTool+ [link]
- AFT (Advanced Feedrate Technology)
- Measuring Pin
- Center Thickness Measurement Gauge
- Exhaust Filter System for Mist Collection
- Offline Programming Module
- Asphere processing with optional software package
