SP 20.3

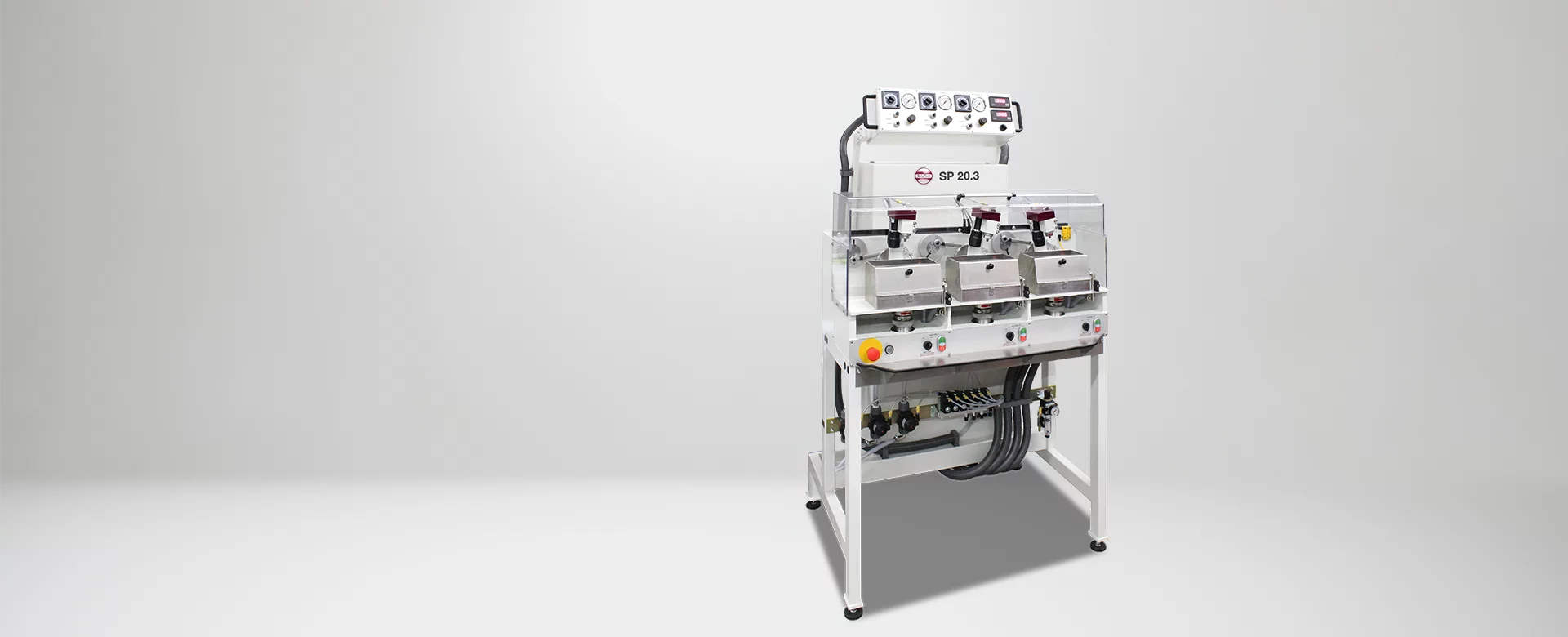

Conventional high speed polishing machine SP 20.3 in SynchroSpeed mode. The low cost alternative to CNC machines at same cycle times.
Precision optics
Conventional
Polishing
Grinding
Contact request
Highlights
- Fine grinding and polishing of spherical lenses in single lens production or on multiple spot blocks
- Finest grinding with pellets, Pre-polishing with plastic, pitch polishing can be done simultaneously, even different radii can be done simultaneously
- Ideal kinematics for high aperture optics (Ball Pin Technology)
- Pitch polishing or foil technology possible
- Small space requirements due to compact design
System advantage
- Ideal for the production of rod lenses, microscope- and endoscope lenses
- Minimal cycle time
- Economical production of even small batches due to short and easy set-up
- Precise and repeatable production due to ideal machine kinematics
