SP 6.3 NC

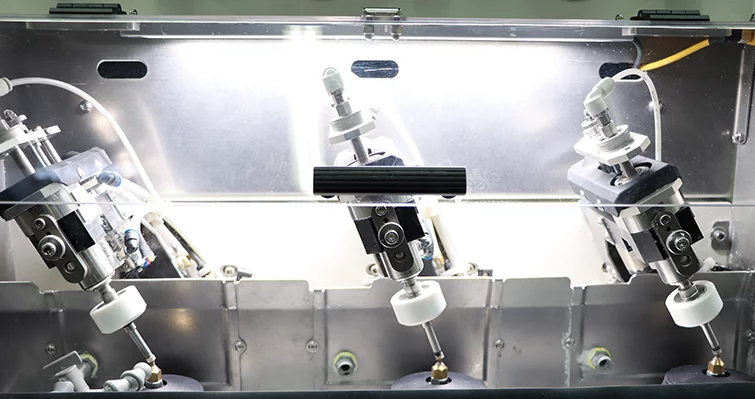

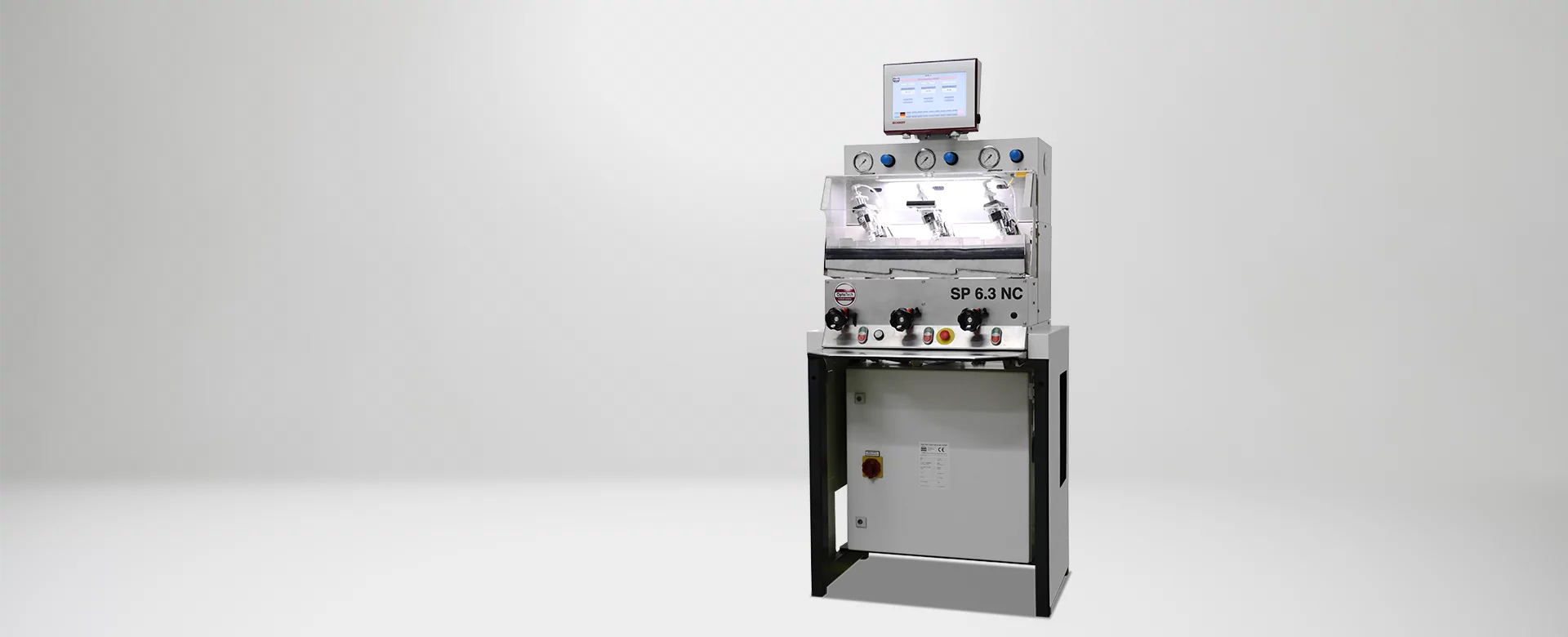

The new SP 6.3 NC is an NC-controlled fine grinding and polishing machine that is specially designed for single lens production or on multiple spot blocks with high aperture in the field of micro and endoscope optics. 3 independent work spindles offer a high degree of flexibility and productivity.

Precision optics
NC
Polishing
Grinding

Highlights

  • NC-controlled fine grinding and polishing of spherical lenses in single lens production or on multiple spot blocks

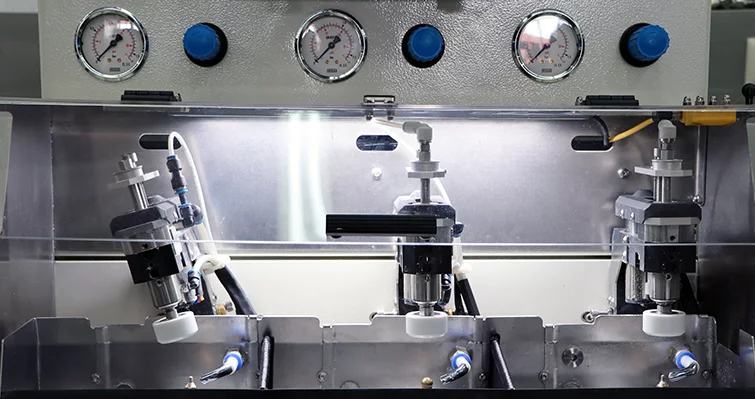

  • 3 independent work spindles offer a high degree of flexibility and productivity
  • Minimal cycle time. Small space requirements due to compact design. Standing and sitting operation possible.
  • Precise and repeatable production due to ideal machine kinematics with swivel movement around the center of the radius of the workpiece
  • Pitch polishing or foil technology possible

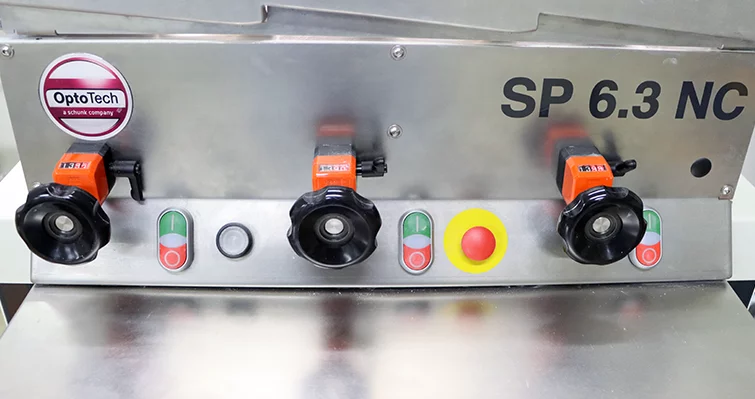

  • Extendable, swiveling and height adjustable control panel

System advantage

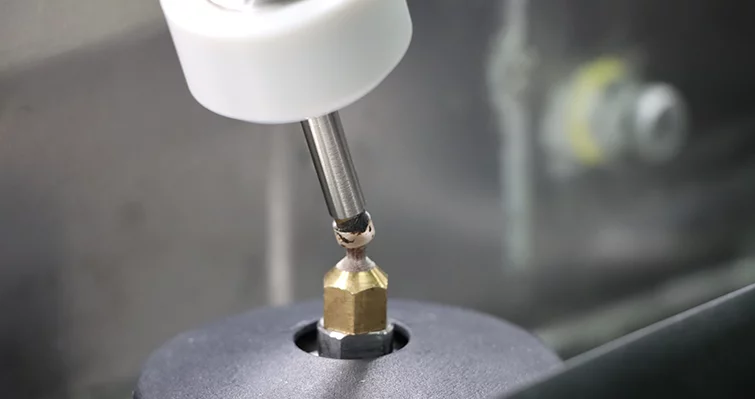

  • Ideal for the production of rod lenses, microscope and endoscope lenses
  • Economical production of even small batches due to short and easy set-up

Options

  • Pitch polishing or foil technology possible
  • Tools
  • Clamping systems
  • Coolant and polishing tanks
SP 6.3 NC
Application

NC-controlled Fine Grinding and Polishing

Working Range Aperture (Spot Block)80 ° - 175 °
Working Range Aperture (Workpiece)80 ° - 150 °
Working Range Radius0 mm - 10 mm
Oscillation Amplitude: +5° to -46°
Stroke (Upper Spindle)20 mm pneumatically, adjustable stop
Tool SpindleSpeed: 10 - 2000 rpm, infinitely variable; Interface: Thread M5 DIN 58725
Workpiece SpindleSpeed: 0 - 1000 rpm, infinitely variable; Interface: Thread M5 DIN 58725

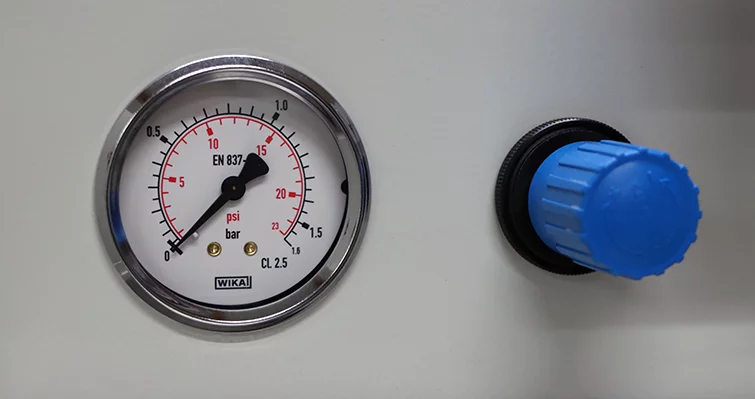

Air Pressure Requirement5 bar
Power Requirement (others on request)2 kW
DimensionsWidth: 735 mm, Height: 1650 mm, Depth: 730 mm
Weight (approx.)250 kg
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
