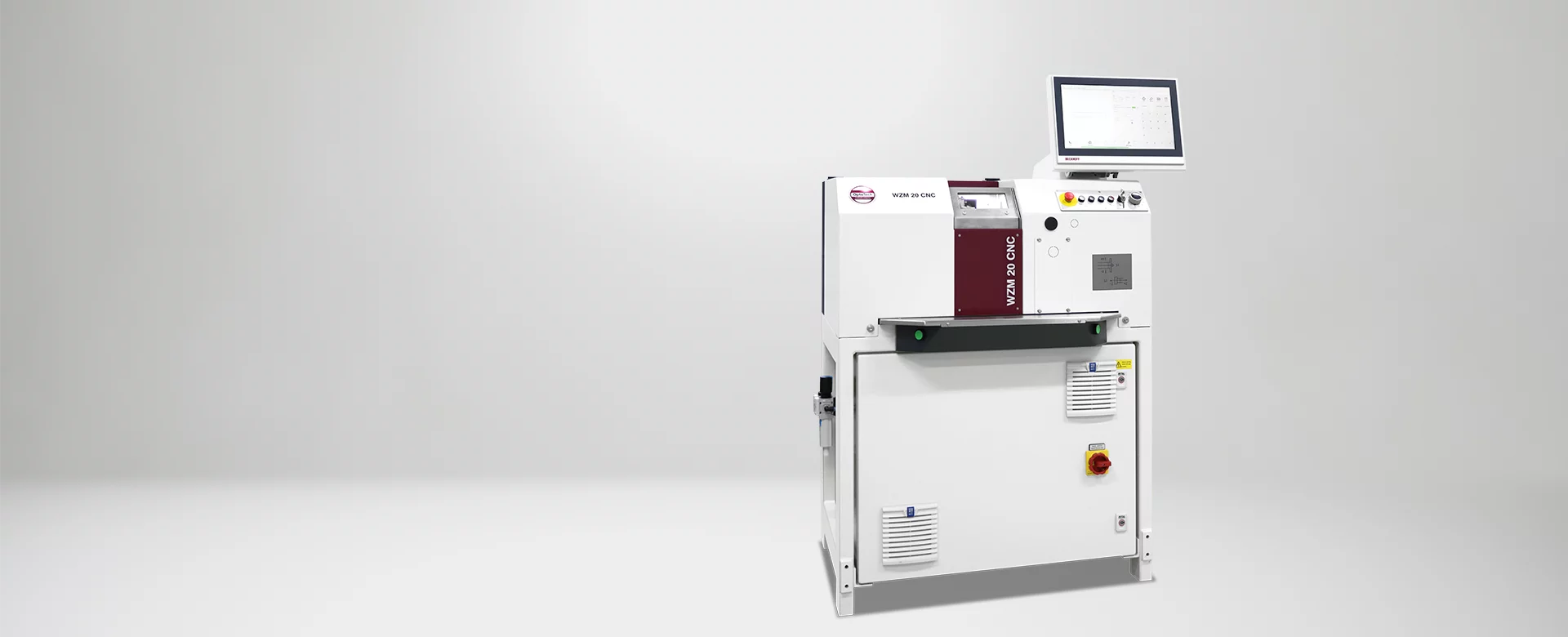

WZM 20 CNC
The WZM 20 CNC is a compact and easy to operate centering machine for components mounted onto exchangeable runners. Especially suited for super micro-optics and endoscopes.
Precision optics
CNC
Centering
Close
Video
Contact request
Highlights

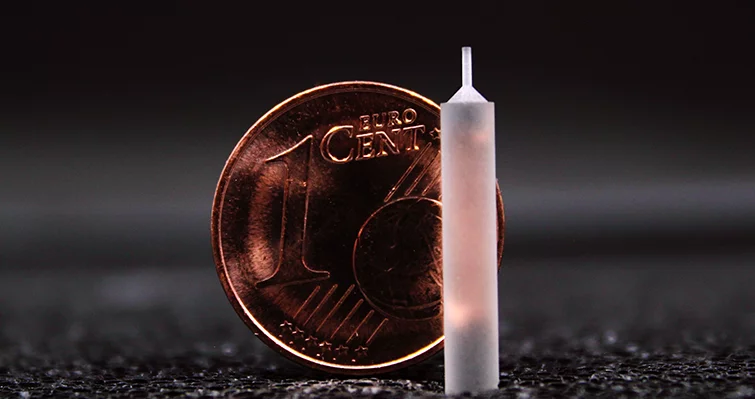

- Exchangeable spindles for processing micro-optics or rod lenses
- Table machine version
- 2 CNC Axes (X, Y)
- The WZM 20 CNC ideally fits to the new OptoTech micro-optics manufacturing concept

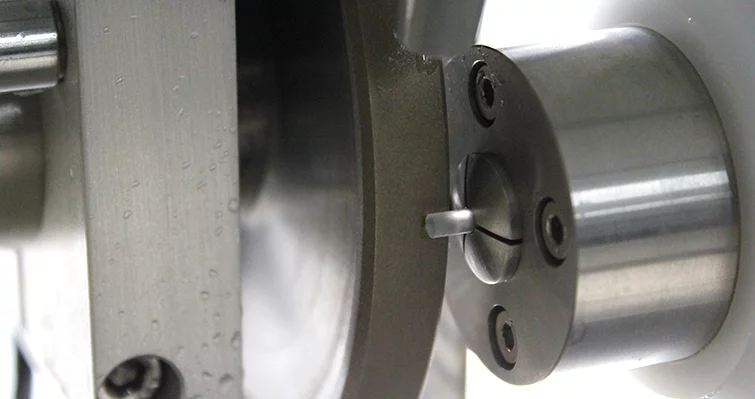

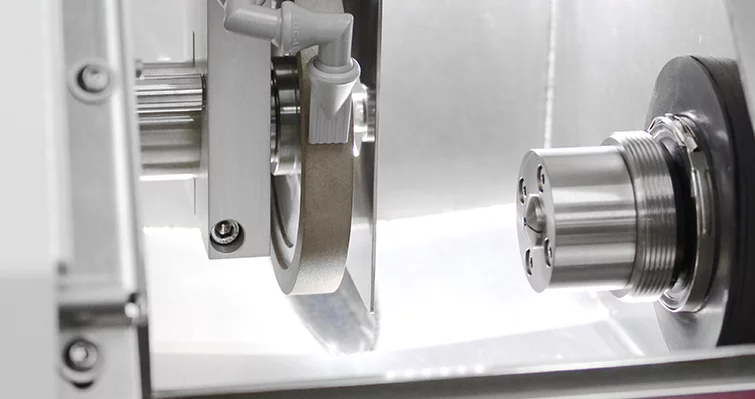

- Grinding Process: Diameter of lens with chamfering upper /lower with forming centering wheel, individual feed rates and spindle speed
- Beckhoff TwinCat3 Controller with 15,4“ Touchscreen and Microsoft Windows System Software
System advantage
- The WZM 20 CNC ideally fits to the new OptoTech micro optics manufacturing concept
- Cost efficient
- Rigid machine base made of granite for highest precision
Options

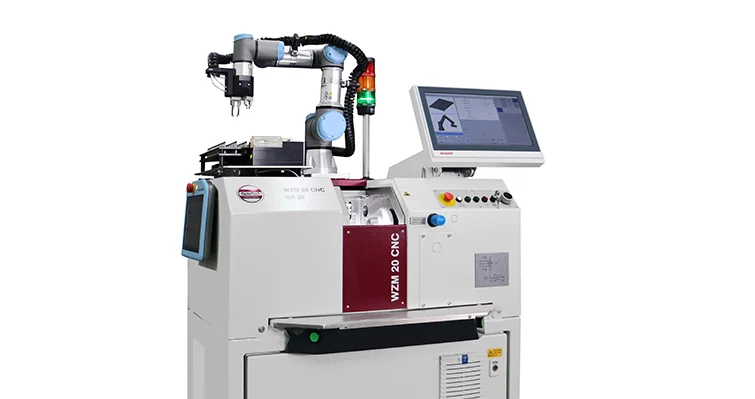

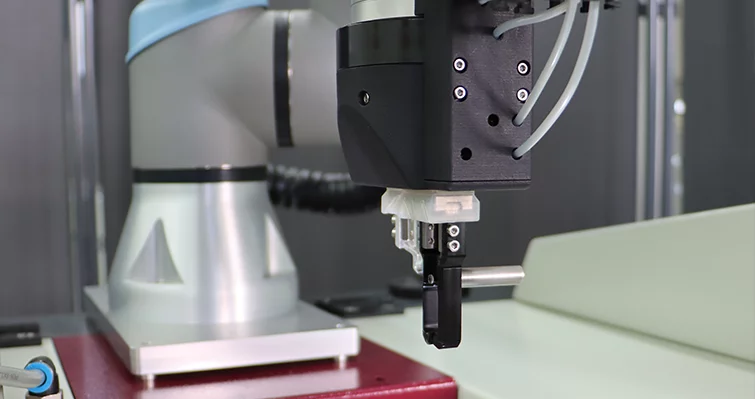

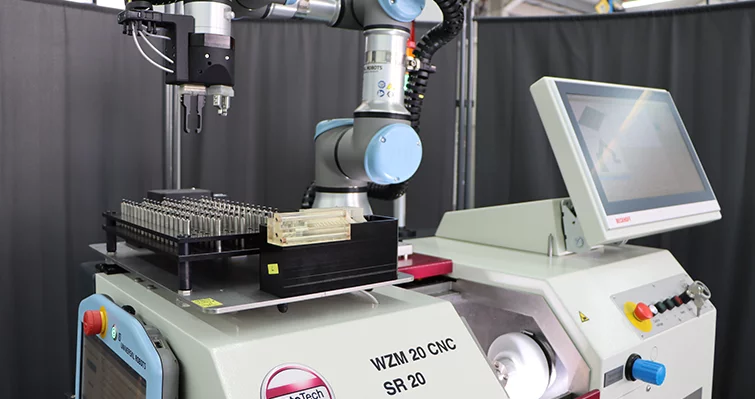

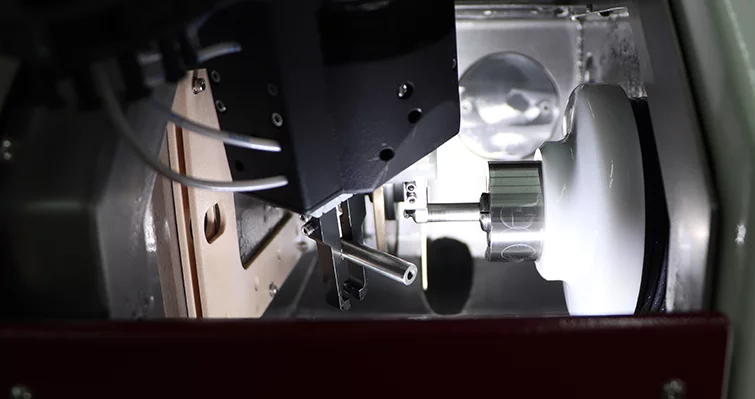

- Automated handling availanle (SR 20)
- Measuring device for workpiece position recognition

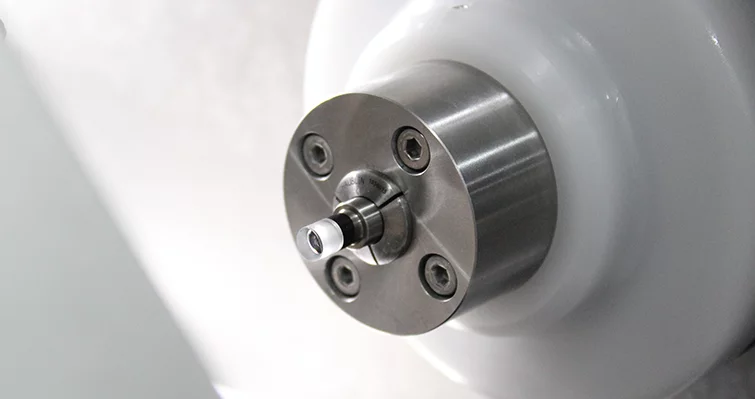

- Various workpiece spindle options available:
- Spindle with hydro expansion chuck HD12

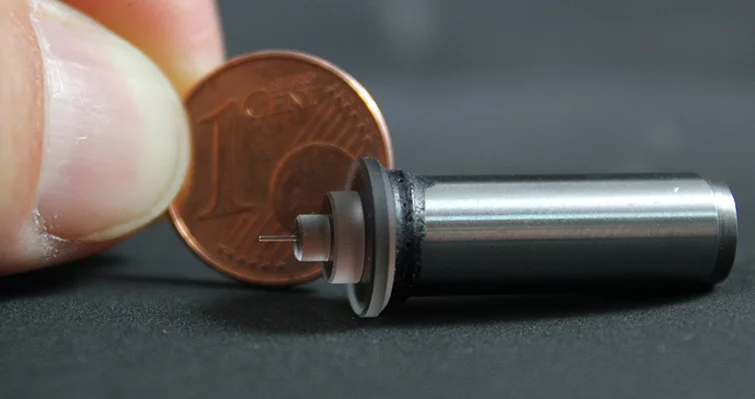

- Spindle for precision carrier (PETK)
- Spindle with collet chuck
- Individual adaptation on existing concept or solution by OptoTech
