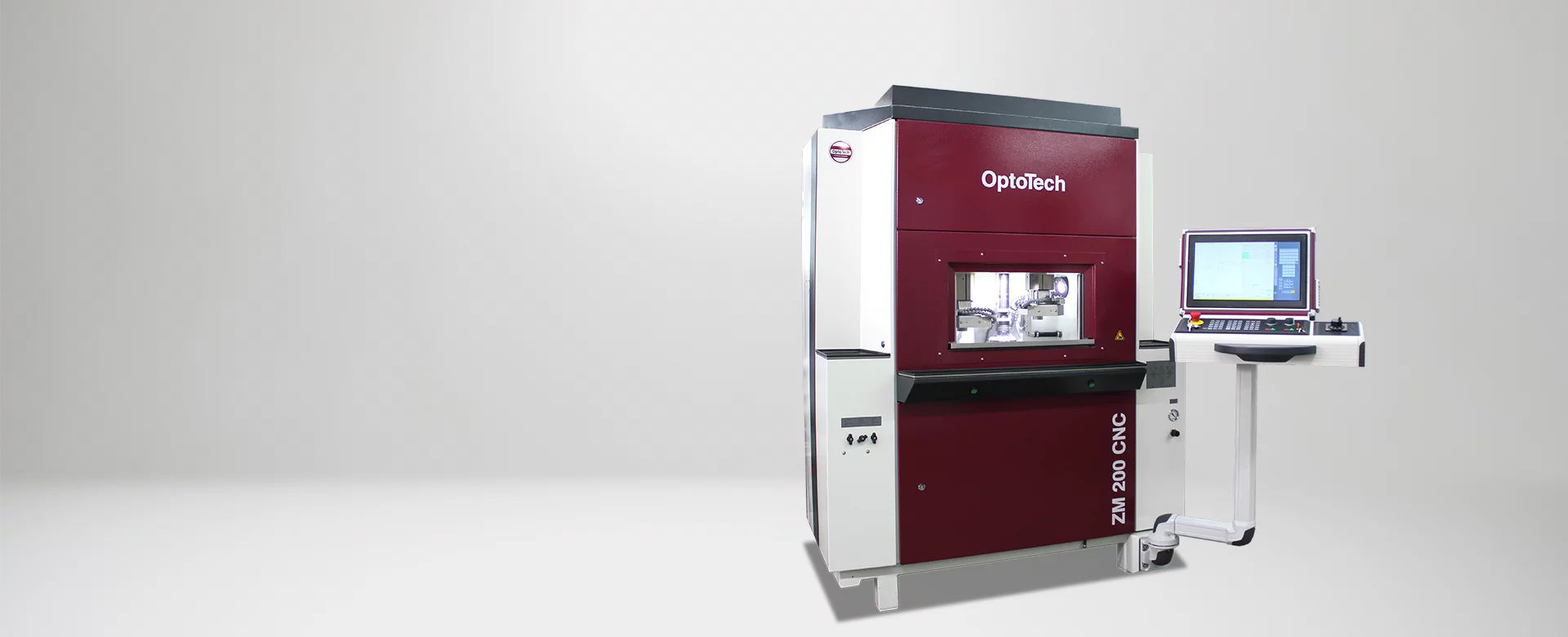

ZM 200 CNC-TC
The ZM 200 CNC-TC is a simultaneously working edge processing machine in highest precision. The high quality software module allows even the production of complex edge geometries.
Precision optics
CNC
Centering
Contact request
Highlights
- Centering and edging with CNC quality
- High precision bell clamping centering machine in highest quality that considers all requirements of the modern optical workshop

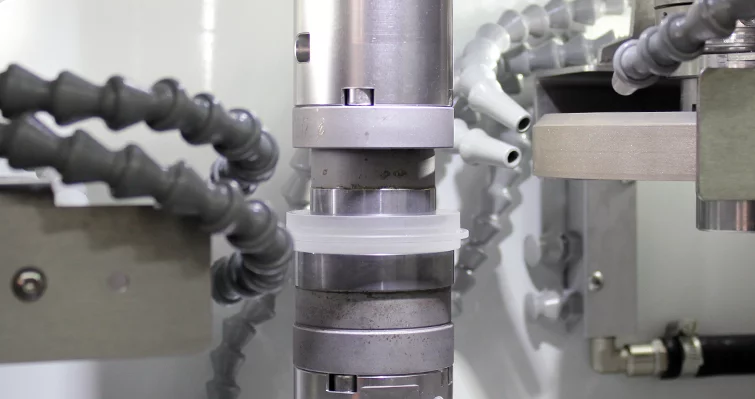

- Bell clamping method with OptoTech Hydro-Soft centering for the most precise centering, even for small centering angles

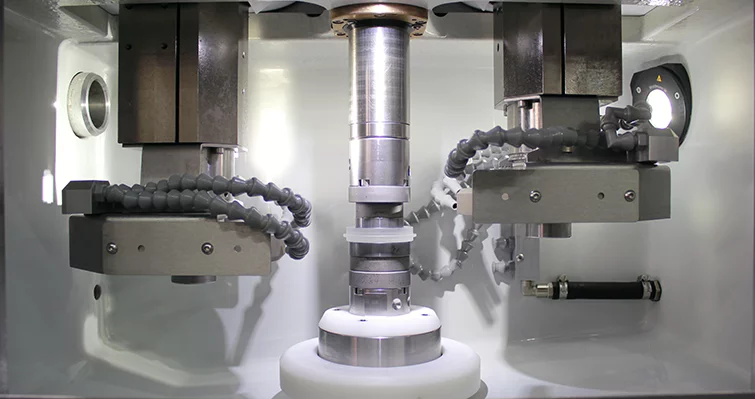

- 2 tool spindles (TwinCut) with simultaneous processing for cycle time savings up 30-40%
- Centering of blocked lenses using the interchangeable arbor process
- Edging spindles are mounted in a torsion resistant cast iron "box-in-box" system that assures maximum accuracy
- Automatic program correction by measuring the center thickness

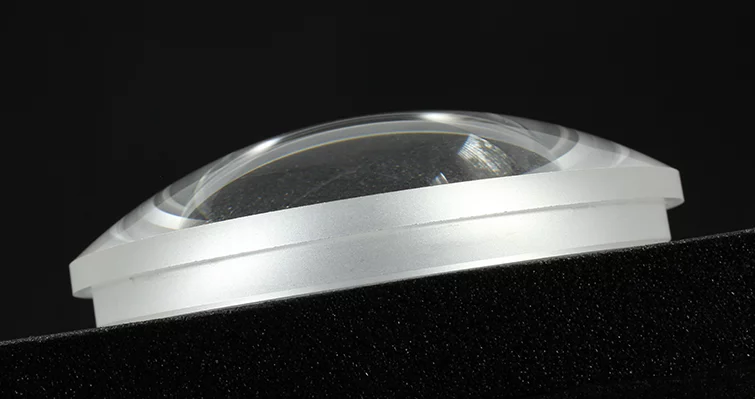

- Combined recess and correction cuts with individually adjustable feed rates and speeds of rotation allow even complex processing steps to be peformed without having to change tools
- Simple tool changing due to the clamping system used. Tools comply with DIN standards.
Options
- Laser centering device for transmission and reflection for lenses with a small clamping angle
- C-Axis package for truncations, profiling etc. and processing non-rotationally symmetric lenses
- Camera for monitoring pre-profiled workpieces while loading
- HD 40 Chuck for the lower spindle
