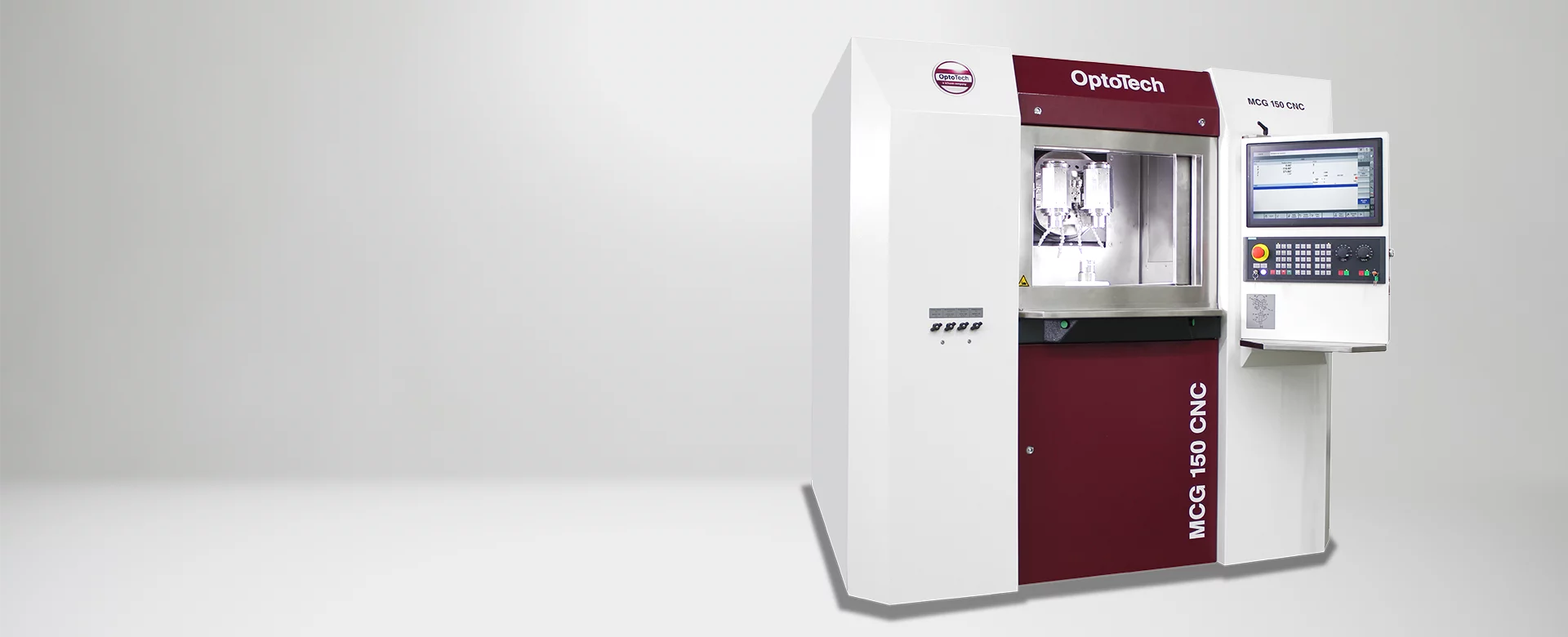

MCG 150 CNC
The new compact optical processing center MCG 150 CNC is one of the latest processing centers made by OptoTech. Whatever you want to produce, whether aspheres, spheres, edging, prisms, cylinders. 3D-optics or drilling holes, the MCG 150 is the perfect machine for these tasks. Up to five CNC axes and an innovative tool concept grant the requested flexibility.
Precision optics
CNC
Grinding
Close
Video
Contact request
Highlights
- Prism grinding by manual CNC-DIN-Programming
- Machine base made of cast iron for highest rigidity
- 1 vertical workpiece spindle, movable in X-Z-direction
- 2 vertical tool spindles, mounted on B-Y-Axis, rotable on the B-Axis
- Workpiece spindle combined with optional C-Axis
- AC servo motors for X- and Z-Axis
- Up to 5 CNC Axes
- Microsoft Windows operating system with OptoTech user interface
- Interfaces to Taylor Hobson Form Talysurf, Mahr MarSurf, Mitutoyo Measuring System, OptoTech Workshop Interferometers of the OWI XT Series (Others available on request)
System advantage

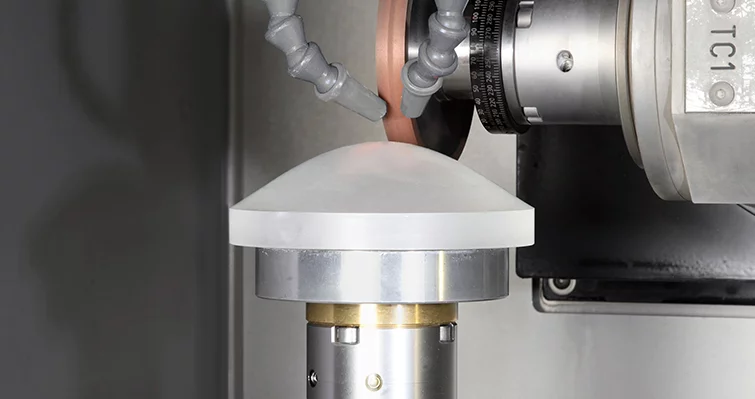

- Multi spindle concept for pre- and fine grinding of spheres and aspheres. Even grinding of complex shapes is possible.
- High flexibility due to up to 5 CNC axes and an innovative tool concept
- Quick and precise tool change due to Hydro-Expansion Chuck Technology (Ø 25 x 40mm DIN)
Options
Machine Options:
- C-Axis
- 3D-Measuring Pin
- Exhaust Filter System for Mist Collection
- Software Package for Cylinder and Applications like Drilling, Sawing or Freeform Processing and Edging

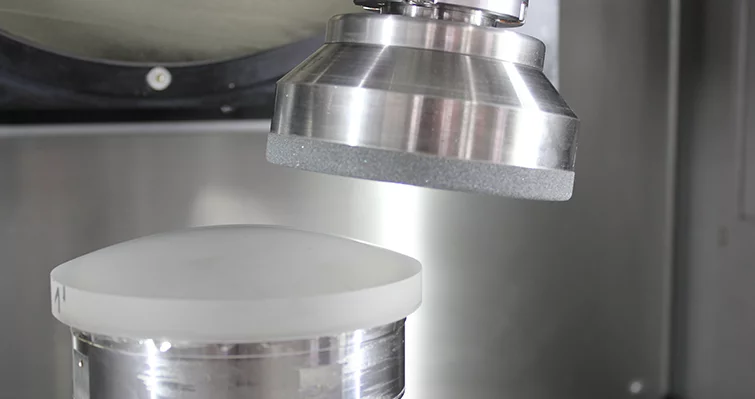

- KombiTool / KombiTool+ [link] or diamond cup wheels for processing spheres or rotationally symmetric aspheres
- KombiTool / KombiTool+ [link] or grinding wheels for processing aspheres, cylinders and freeform surfaces
Software Options:
- F3 Software for asphere and freeform processing
- ShopMill Software for drilling holes and milling of pockets etc.
