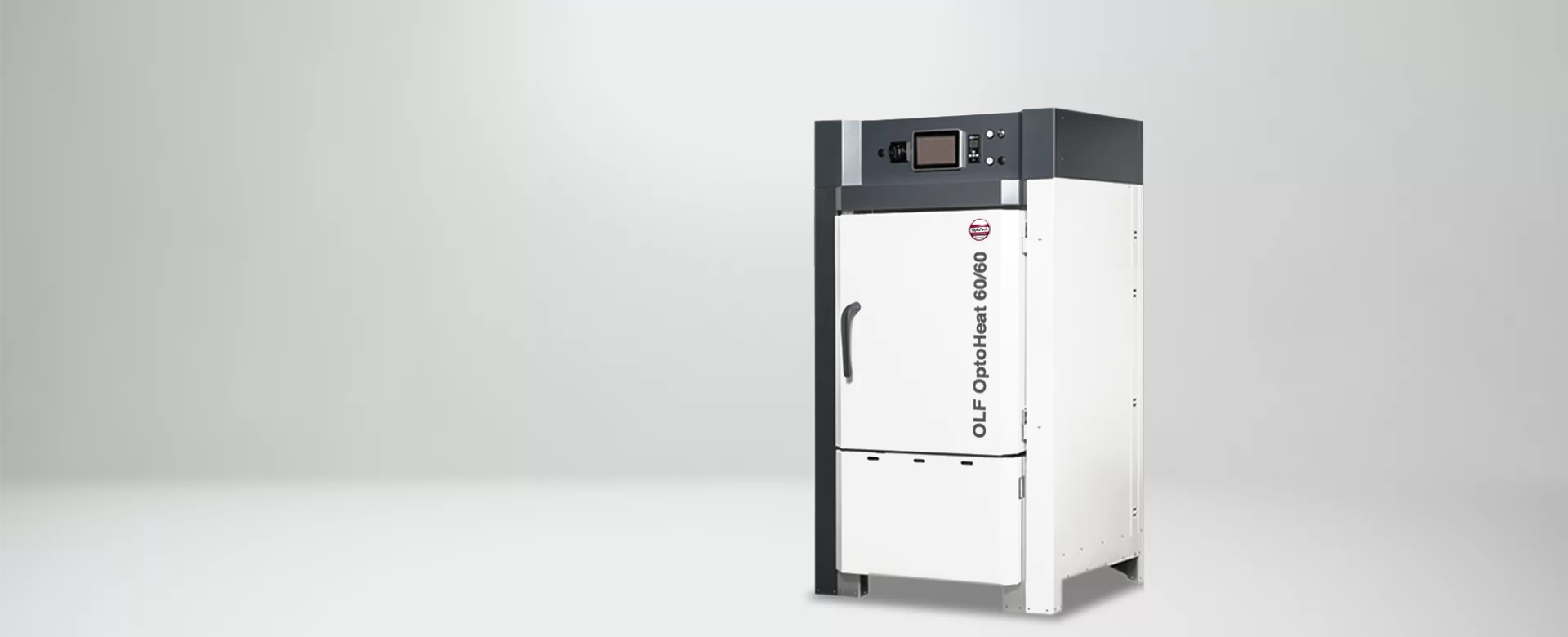

OLF OptoHeat 60/60

The OLF OptoHeat furnaces are specially designed for curing coatings on ophthalmic lenses after the hardcoating process. The system is available in 2 different versions, making it suitable for labs of any size.

Coating

Curing

Contact request

Highlights

Specially designed for curing coatings on ophthalmic lenses after the hardcoating process
2 different versions makes the OptoHeat series suitable for labs of all sizes
Oven capacity for up to 320 lenses (8 shelves with 40 lenses per shelf at 70mm)
Cycle time of 30 minutes per cycle on average
Very fast heating rates and homogeneous temperature distribution
Macro controlled processes offer the possibility to significantly reduce curing times

System advantage

Stand alone units with a small footprint
Fast curing times due to homogeneous temperature distribution, ideal air velocity of both sides of the lenses and optimal air ventilation system
Shorter process times reduce energy consumption
Reproducible product quality

	OLF OptoHeat 60/60
Application	Furnaces for Curing Coatings on Ophthalmic Lenses
Average Air Velocity	Approx. 0.9 m/s
Circulating Airflow	Approx. 1200 m³/h
Connection Voltage	3/N PE AC 400V +/-10%, 50 Hz
Control Accuracy	+/- 1.5K
Exhaust Airflow	Approx. 102 m³/h
Heating Power	7.2 kW
Heating Time	From room temperature to 150°C in 18 min
Oven Capacity	Up to 8 shelves (40 lenses per shelf at 70mm)
Recovery Time	Back to 150°C after 30s door opening in 2 min
Vapour Space Volume	369 litres
Working Chamber Dimensions	600mm x 600mm x 600mm (WxDxH)
Working Space Volume	216 litres
Working Temperature	150°C
Power Requirement (others on request)	8 kW
Dimensions	Width: 1000 mm, Height: 1590 mm, Depth: 1170 mm
Weight (approx.)	295 kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
