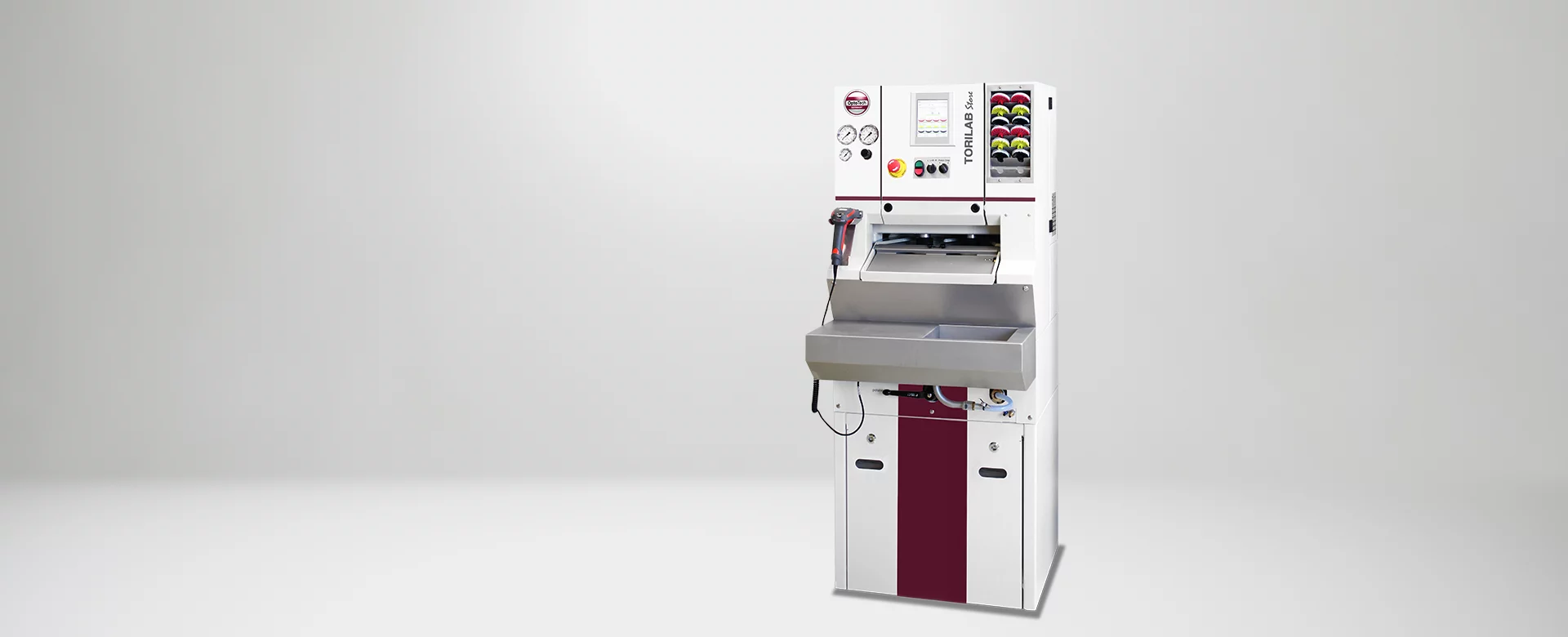

Torilab Store

The OptoTech Torilab Store is a 2 spindle machine for polishing toric, spheric and freeform design lenses with only a handful of OptoTech new developed flex tools. The tools have an excellent tool life time so the consumable cost for operating a Torilab Store will be extraordinary low.

Spectacle optics

Polishing

Manual

Plastic

View now

PDF Download

Contact request

Highlights

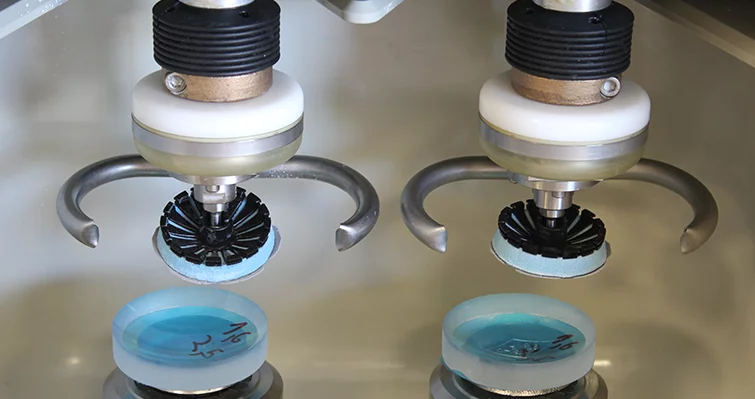

2-Spindle machine for polishing toric, spheric and freeform lenses with the new Flex Tools developed by OptoTech

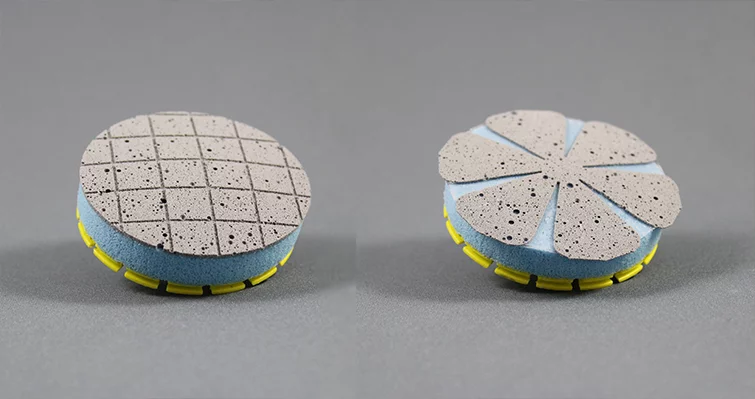

The tools have an excellent tool lifetime so the consumable costs for operating a Torilab store will be extraordinary low (up to 100 surfaces/tool)
Easy handling
Fully PLC-controlled with independent pressure controll for the cylinder
Macro functionality
Host interface connection
Compatible to standard block systems

System advantage

Most economic ophthalmic polishing machine in the market for FREEform lenses and the reliable and cost-effective entrance to freeform lens production for all kind of designs
Minimal machining times due to the ideal kinematics

Options

Torilab Server Software, Polishing tank, Chiller

Technical Data

	Torilab Store
Application	Manual polishing machine
Lens Diameter	45 mm - 80 mm
Working Range	Plano up to 10 dpt. (cylinder -4 dpt.)
Control	Fully PLC-control for tool and lens spindle with independent pressure controls for the tools and the cylinder
Lens Material	All organic Materials
Productivity	24 lenses/h; depending on process
Tools	OptoTech Flex-Tools
Tools	3 to 4 tools for pre-polishing 3 to 4 tools for fine polishing
Dimensions	Width: 660 mm, Height: 1620 mm, Depth: 810 mm
Weight (approx.)	180 kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
