PPM 20.1

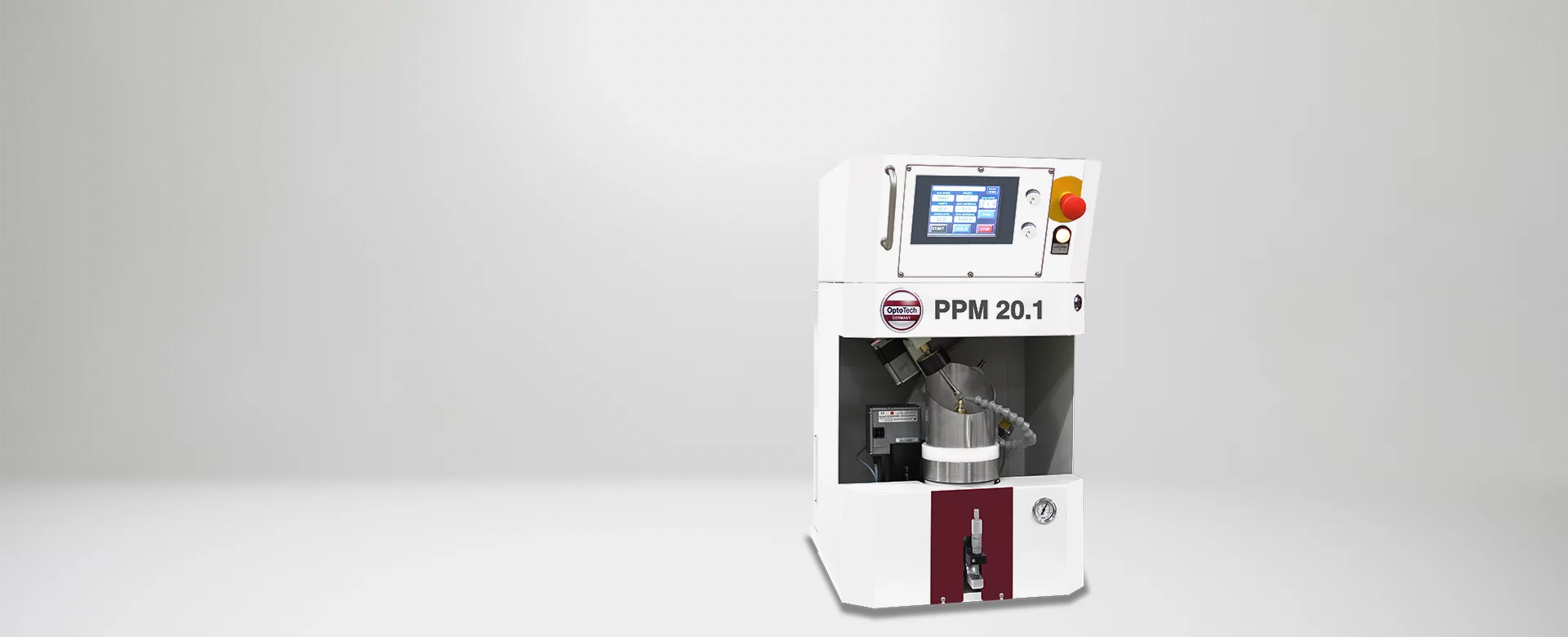

The high aperture polishing machine PPM 20.1 is the ideal solution for optical components with a high aperture angle in the range of micro and super micro optics. The simple and efficient kinematics guarantee highest quality.

Precision optics

Polishing

View now

PDF Download

Contact request

Highlights

NC-Controlled polishing machine. Up to 99 programs can be saved.
Data input of all processing parameters, such as spindle speed, setting angle, cycle time, working pressure etc. via user-friendly touch screen

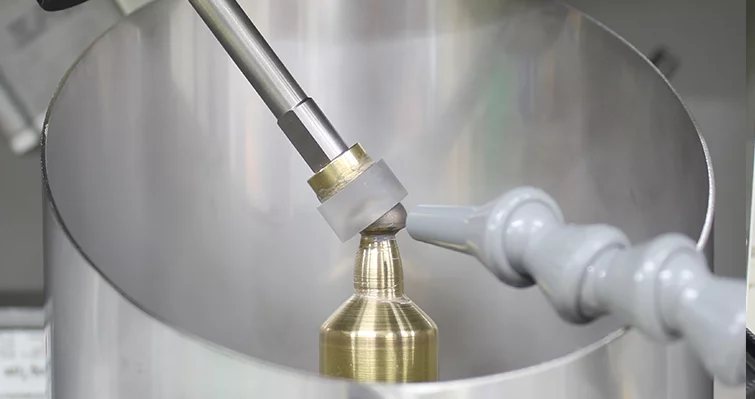

Polishing of optics with high angle of aperture >85° using Ball Pin Technology and planetary kinematics
Actuator of the workpiece in planet technique

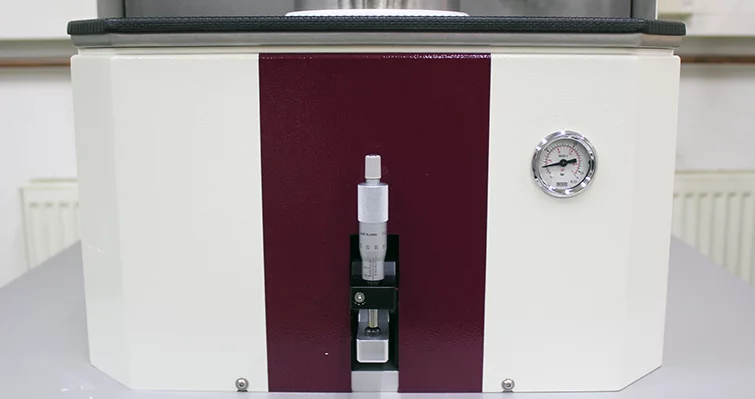

Adjustable spring working pressure

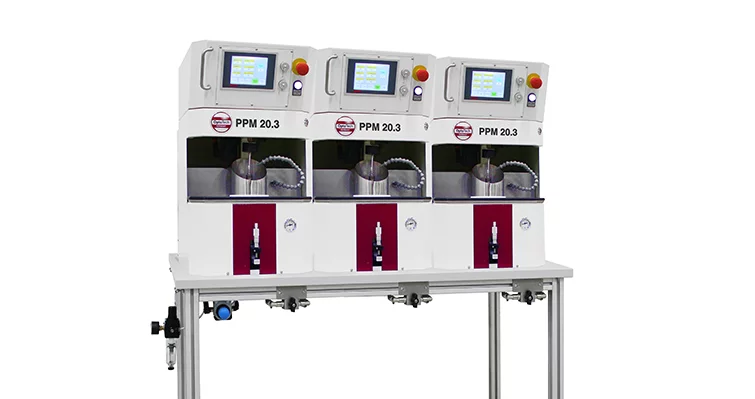

This tabletop machine is available with a single spindle (PPM 20.1) or multiple spindles up to three total (PPM 20.3)
Cycle time adjustable from 0 to 9999 sec

System advantage

Ideal kinematics for these difficult geometries
Highly flexible (for prototyping)
Small space requirements due to compact design

Options

Up to 3 spindles possible (on option)

Technical Data

	PPM 20.1
Application	High Aperture NC-Controlled Polishing Machine
Working Range Angle	80 ° - 175 °
Working Range Radius	0 mm - 20 mm
Oscillation - Amplitude	± 0° - 48°, infinitely variable
Oscillation - Drive	Servo Motor with Lead Screw Spindle
Oscillation - Frequency	3 - 40 Strokes/min, infinitely variable
Tool Spindle	Speed: 0 - 200 rpm, infinitely variable; Drive: Servo Motor with Belt Drive; Interface: Excenter with Ball Pin
Workpiece Spindle	Speed: 0 - 2500 rpm, infinitely variable; Drive: Servo Motor with Belt Drive, Interface: M10 DIN 58725
Air Pressure Requirement	4 bar
Power Requirement (others on request)	1 kW / 400 V / 50/60 Hz
Dimensions	Width: 750 mm, Height: 1540 mm, Depth: 750 mm; incl. table
Weight (approx.)	115 kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
