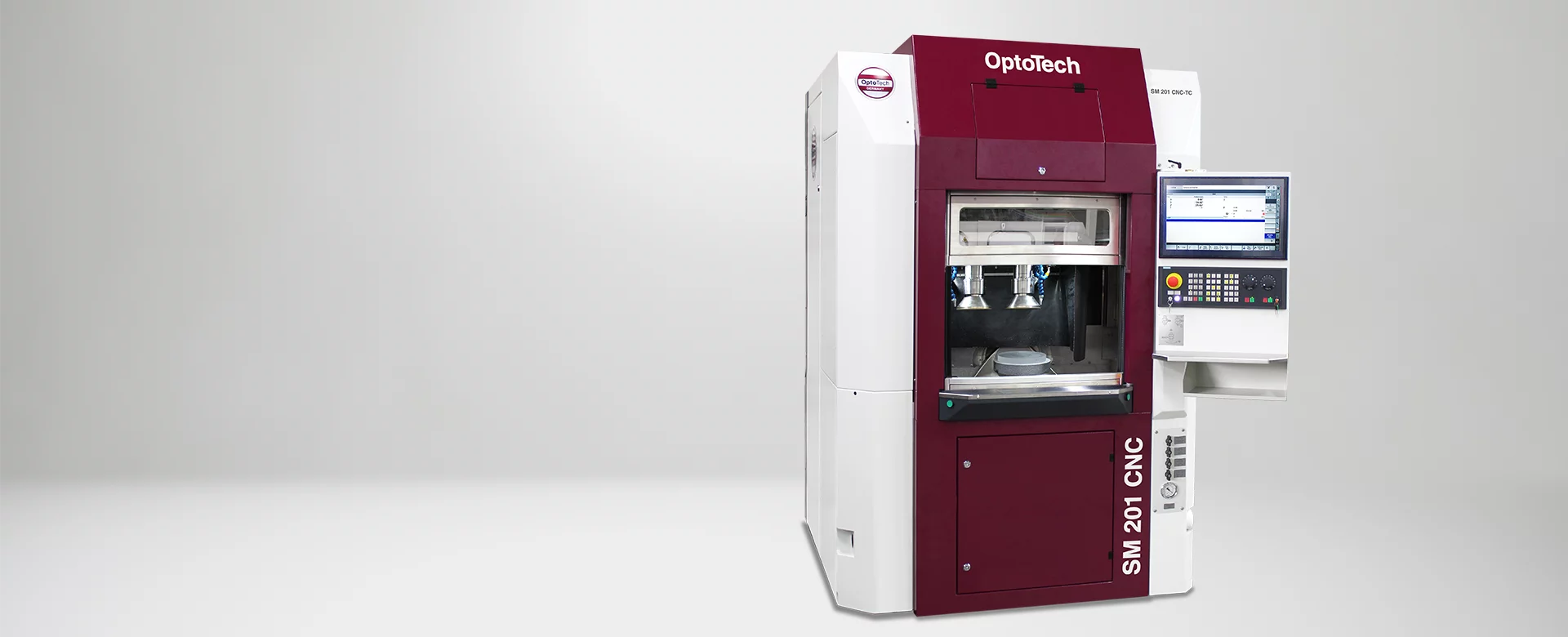

SM 201 CNC-TC
The SM 201 CNC-TC is a 3-axis grinding machine that is perfectly suited for pre- and fine grinding of spheres and plano optical components.
Precision optics
CNC
Grinding
Contact request
Highlights

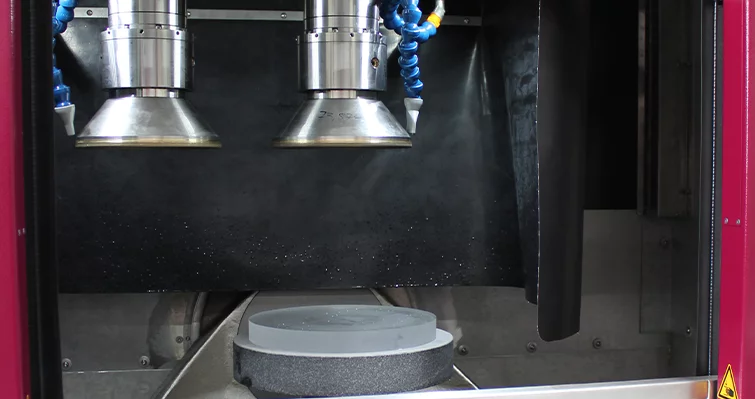

- 2 tool spindles for pre- and cut-to-polish finish grinding
- Production of polishing tool basic bodies up to Ø 400 mm
- Optimisation of cutting process due to multi-cutting steps with adaptable feed rate and spindle speed
- Hydro-Expansion Chuck Technology (Ø 40 x 60mm DIN) for quick and precise tool change
- Microsoft Windows operating system with OptoTech user interface

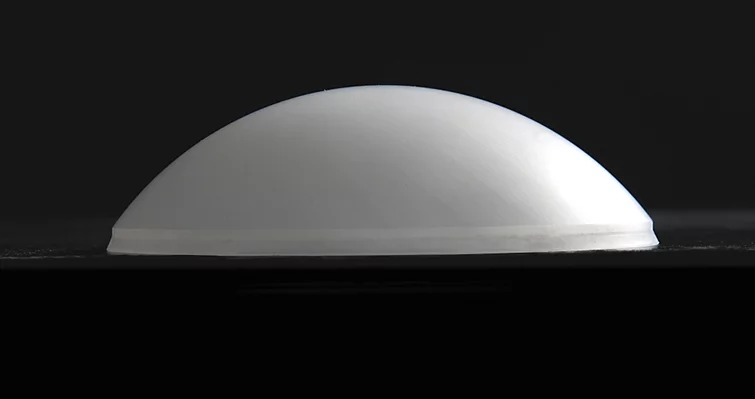

- Grinding to polishable quality in one cycle due to optimised cutting parameters
- Integrated Edging and Chamfering
System advantage
- Optimized cutting process
- Grinding to polishable quality in one cycle due to optimised cutting parameters
- Quick and precise tool change
Process characteristics
Technologies:
- AST (Advanced Setup Technology, Touch Setting): Machine measures the contact point of lens/tool, decreasing set-up time
- AFT (Advanced Feedrate Technology): Variable feed rate depending on pre-selected cutting capacity (spindle load)
- OQT (OptoTech Quality-Control Technology): Cyclic tool wear control in combination with the optional centre thickness measuring gauge. Fully automatic.
