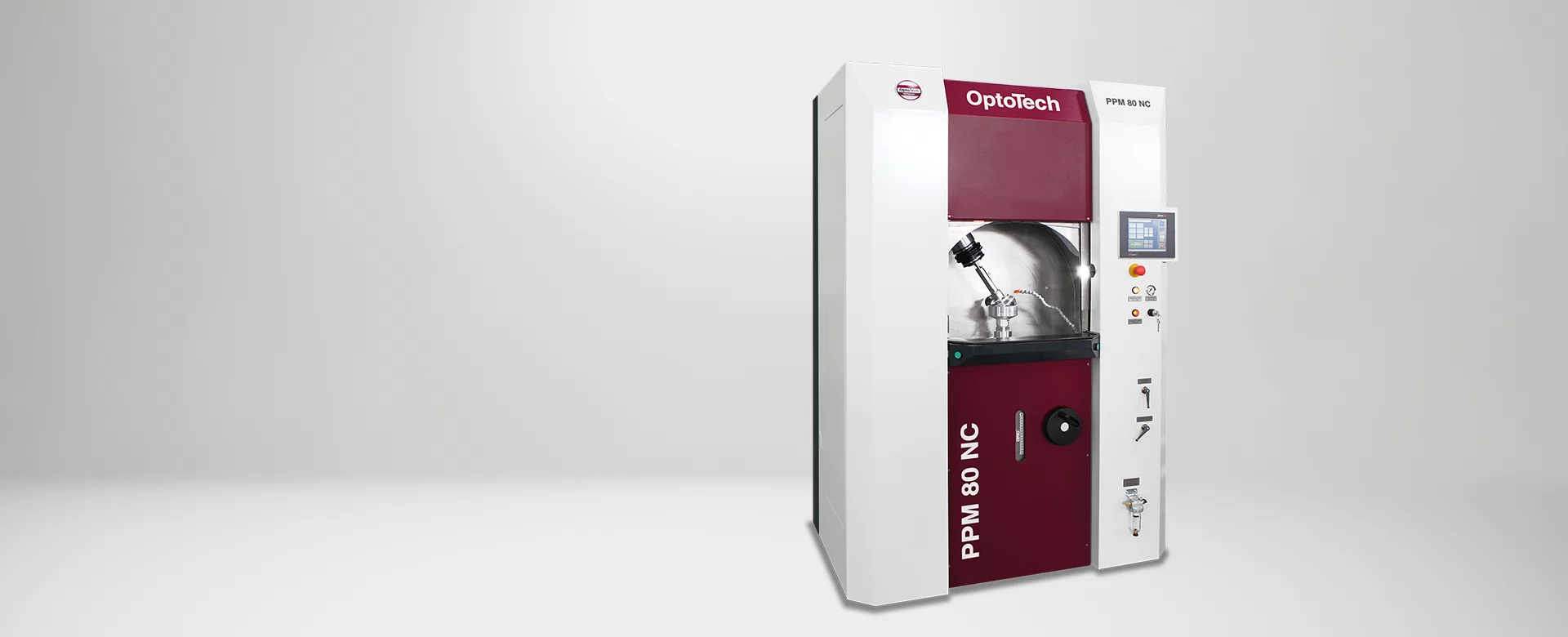

PPM 80 NC

The high aperture polishing machine PPM 80 NC is the ideal solution for high precision finest grinding and polishing of high aperture optics. The simple and efficient kinematics guarantee highest quality.

Precision optics
NC
Polishing
General informationHighlightsSystem advantageTechnical Data
PDF Download
Contact request
Contact form


Contact request

Highlights

  • NC-Controlled polishing machine. Up to 99 programs can be saved.

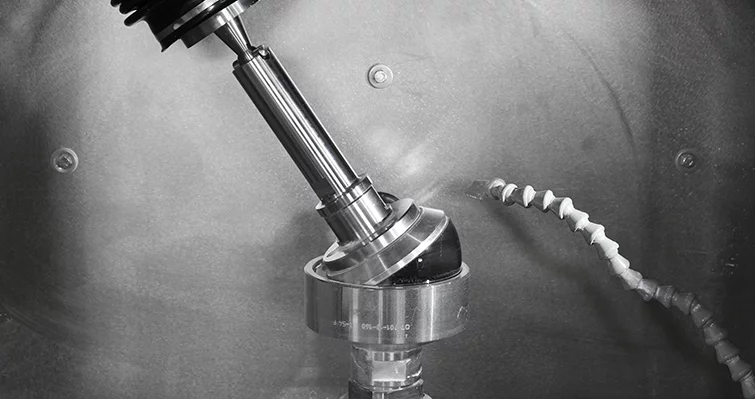

  • Polishing of optics with high angle of aperture >85° using Ball Pin Technology
  • Ideal kinematics for these difficult geometries
  • Highly flexible (for prototyping)
  • Adjustable pneumatic working pressure
  • Cycle time adjustable from 0 to 9999 sec

System advantage

  • Innovative, intelligent technologies for polishing are available without the expense of CNC
  • Developed for polishing high aperture optics > 85°, and ideal kinematics for these difficult geometries
  • Highly flexible and can be used for smaller production runs as well as prototyping
Technical Data
PPM 80 NC
Application

High Aperture NC-Controlled Polishing Machine

Working Range Angle85 ° - 175 °
Working Range Diameter0 mm - 160 mm
Oscillation - Amplitude0° - ± 50°, infinitely variable
Oscillation - DriveServo Motor with Ball Screw Spindle
Oscillation - Frequency0 - 10 strokes/min at 0° - ± 50°; variable
Tool SpindleSpeed: 0 - 80 rpm, infinitely variable; Drive: Servo Motor with Belt Drive; Interface: Ø 18 mm ball with cross pin Ø 8 mm
Workpiece SpindleSpeed: 0 - 800 rpm, infinitely variable; Drive: Servo Motor with Belt Drive; Interface: M27 DIN 58725, optional HD 25
Air Pressure Requirement6 bar
Power Requirement (others on request)10 kW / 400 V / 50/60 Hz
DimensionsWidth: 1400 mm, Height: 2200 mm, Depth: 1450 mm
Weight (approx.)1200 Kg
DisclaimerAll data are subject to change without notice. Please verify details with OptoTech.
